Male Pixel Pigtail Connector (5 pcs) - xConnect

Male Pixel Pigtail (Connector) - xConnect

Male waterproof pigtail connector used for custom controller enclosures, power injection leads, or custom wiring.

Key features

• Waterproof connector for pixel systems
• Suitable for pixel inputs or extension connections
• Available in multiple lengths and conductor options

Technical specifications

• Connector type: xConnect
• Connector gender: Male
• Available lengths: 20 cm or 50 cm
• Conductor options:

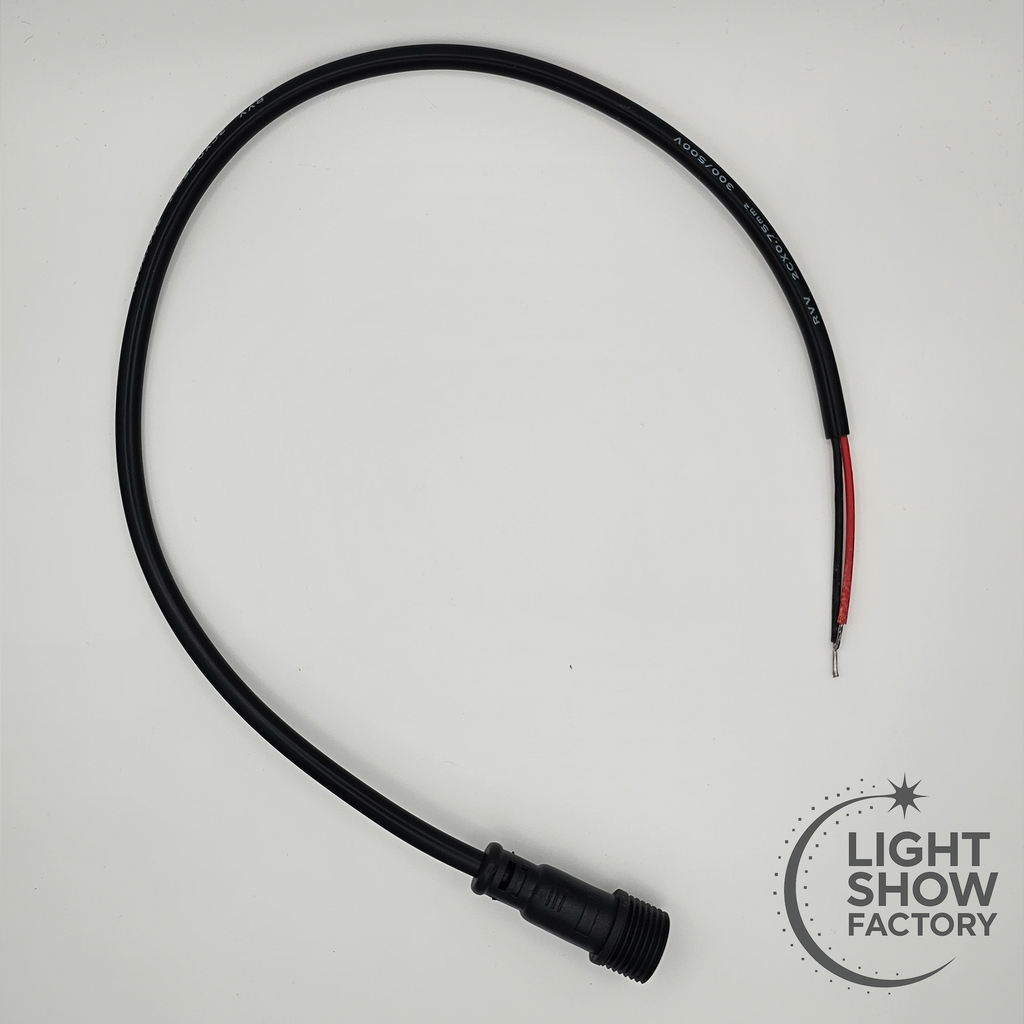

  • 2-core: Power only

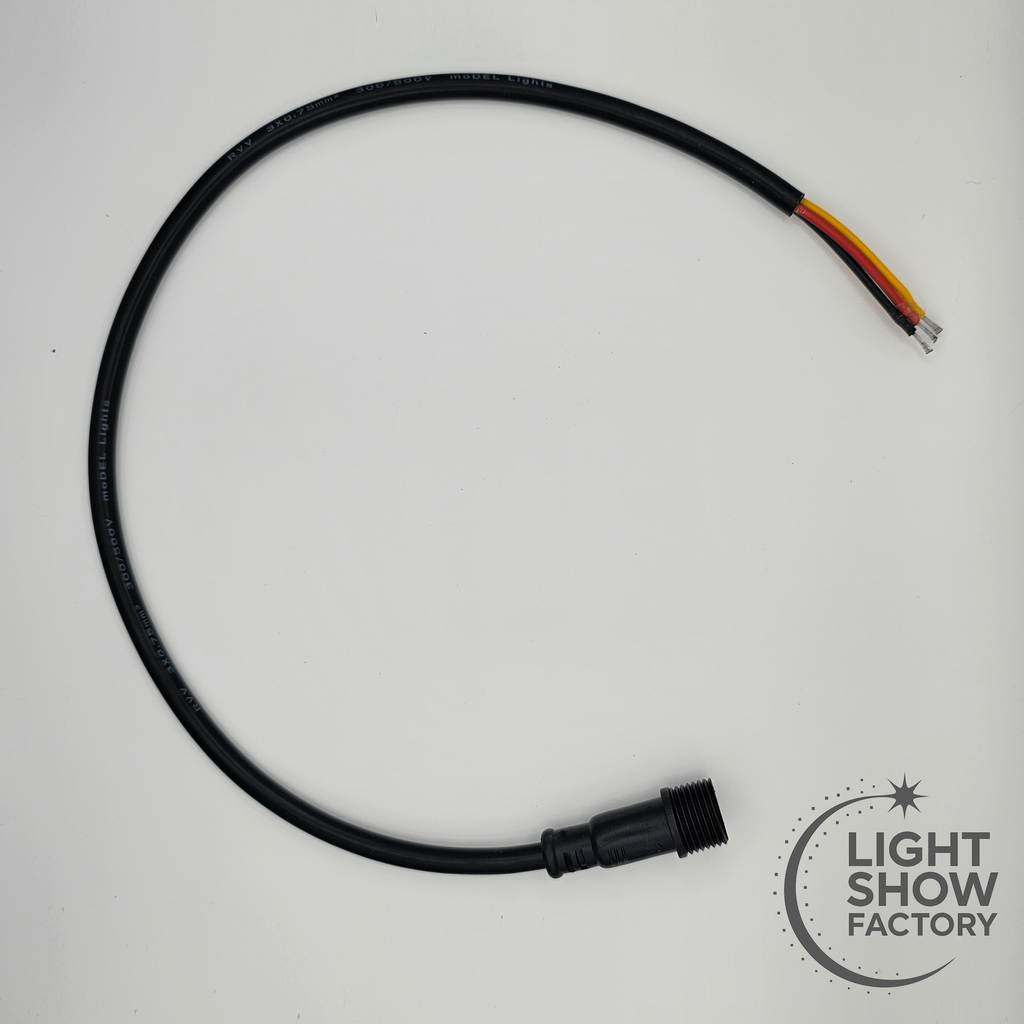

  • 3-core: Power + data

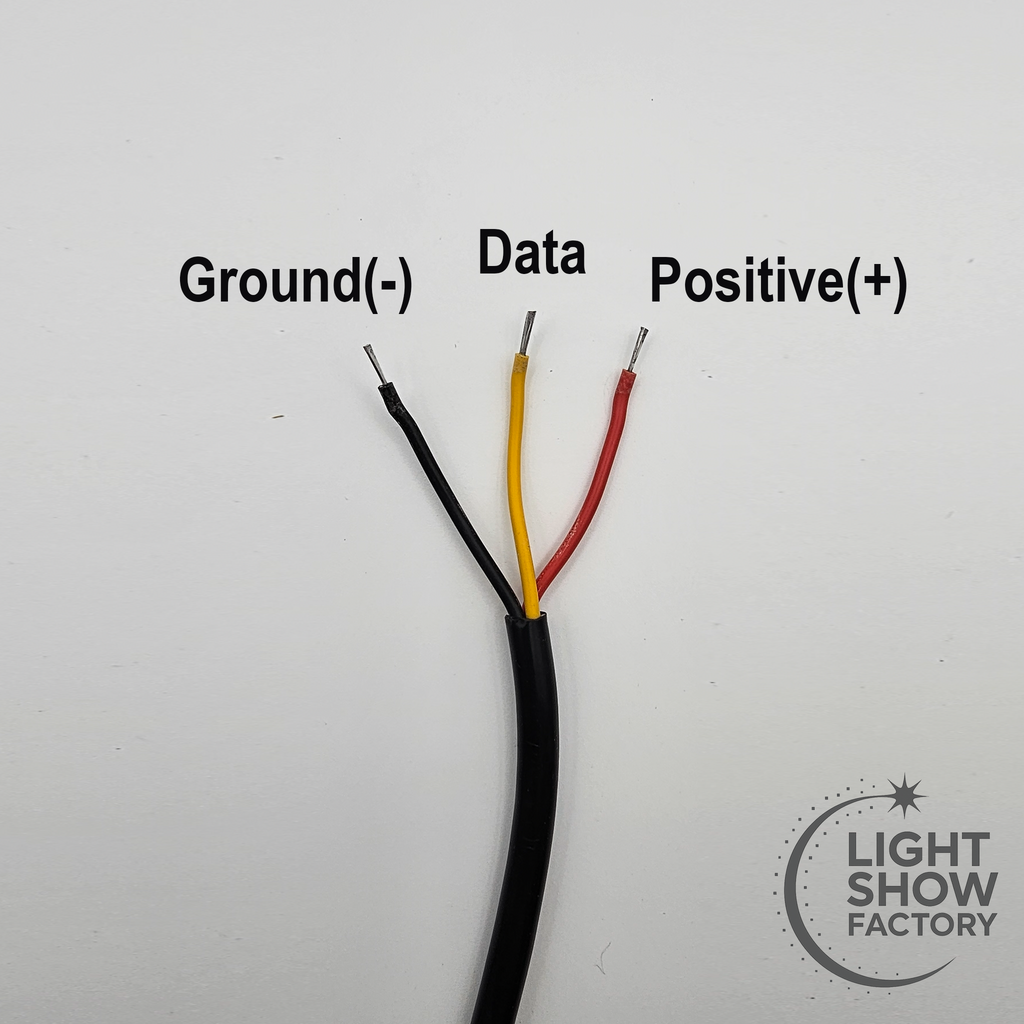

Wire color coding (3-core)

• Red: +V (DC positive, matches pixel voltage)
• Yellow: Data / Signal
• Black: Ground / GND (negative)

Notes

• 2-core pigtails do not include a data wire
• Match connector type, length, and core count to your application
