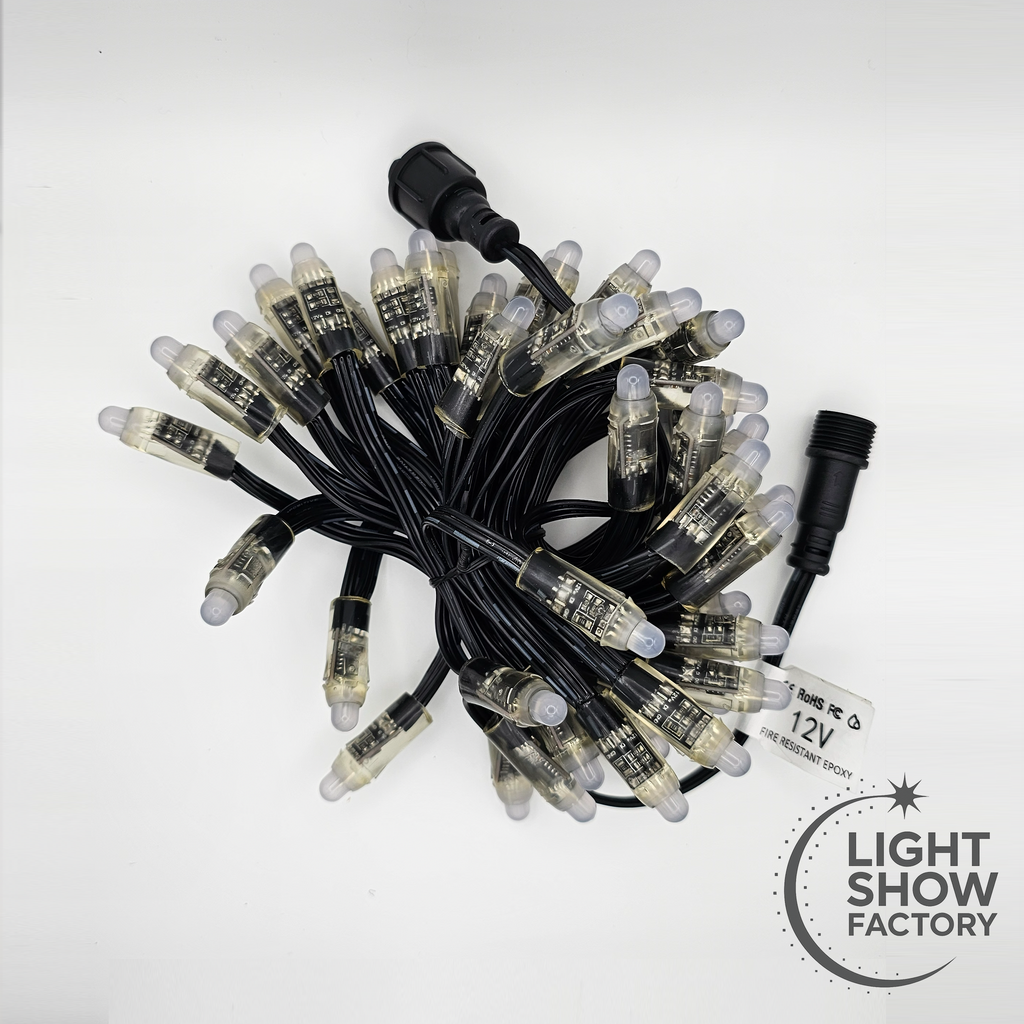

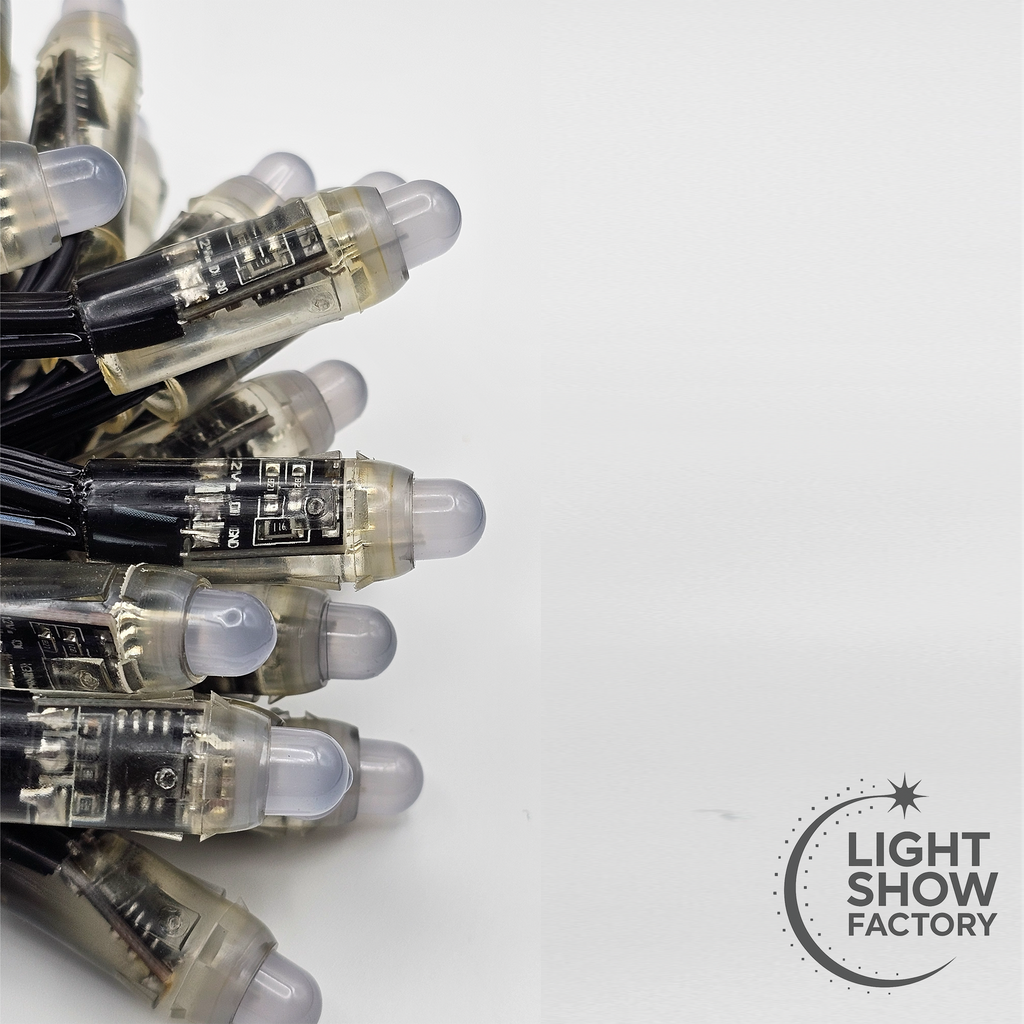

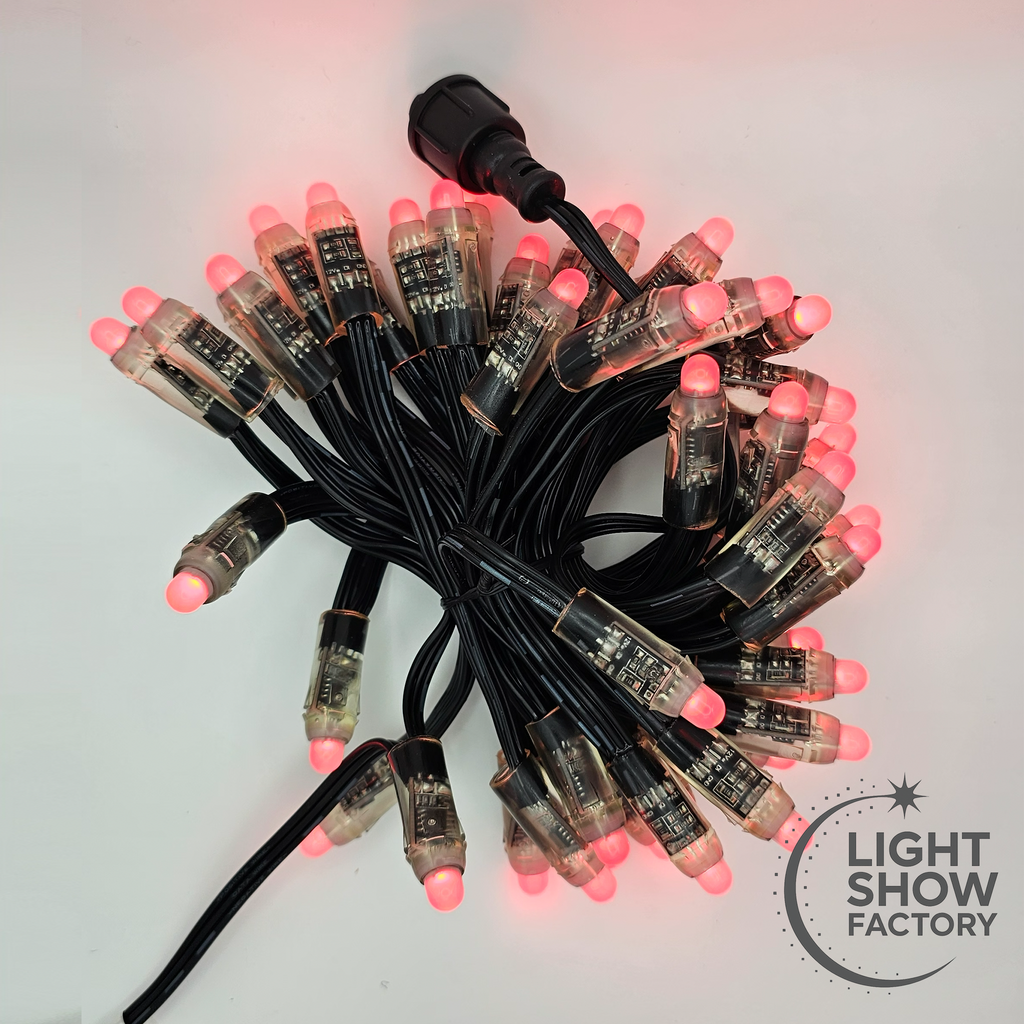

Bullet Pixels - 12V - WS2811 - xConnect

Bullet Pixels - 12V - WS2811 - xConnect (12mm)

Individually addressable RGB bullet pixels designed for outdoor light shows. A traditional 12V resistor-based design that is widely supported and easy to deploy.

Key features

• WS2811 integrated circuit
• 12V DC resistor-based regulation
• Standard 12mm bullet form factor
• Suitable for most props and layouts

Technical specifications

• IC type: WS2811
• Input voltage: 12V DC
• Power consumption: 0.36 W per pixel
• LED type: RGB, 8mm
• Regulation: Resistor-based
• Housing diameter: 12 mm
• Ingress protection: IP68 (clear epoxy-filled)
• Wire color: Black
• Wire gauge: 18 AWG
• Spacing between pixels: 10 cm (4 in)

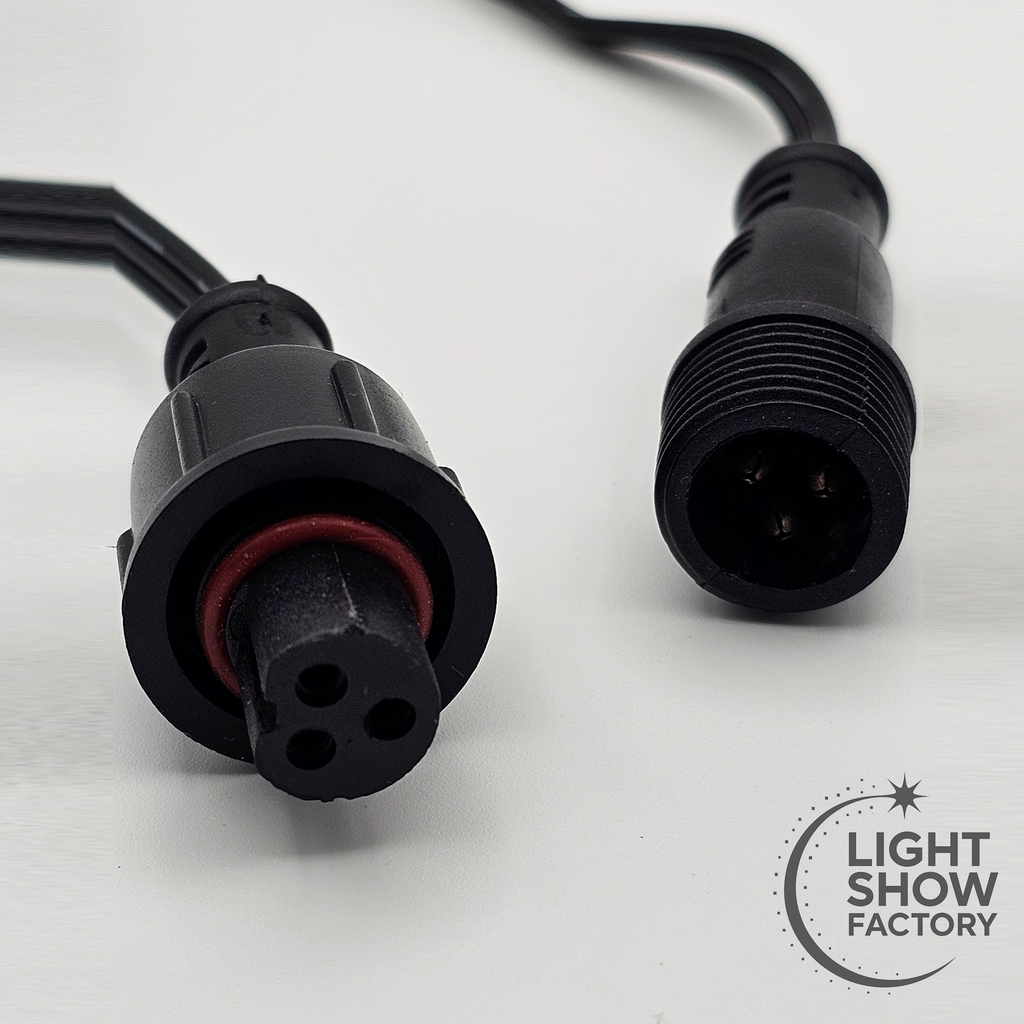

• Connectors: xConnect
• String options: 50 ct or 100 ct

Warranty

• 1-year limited warranty
• Applies to unmodified and uncut pixel strings, including labels
