ILightThat BaldrickDMX

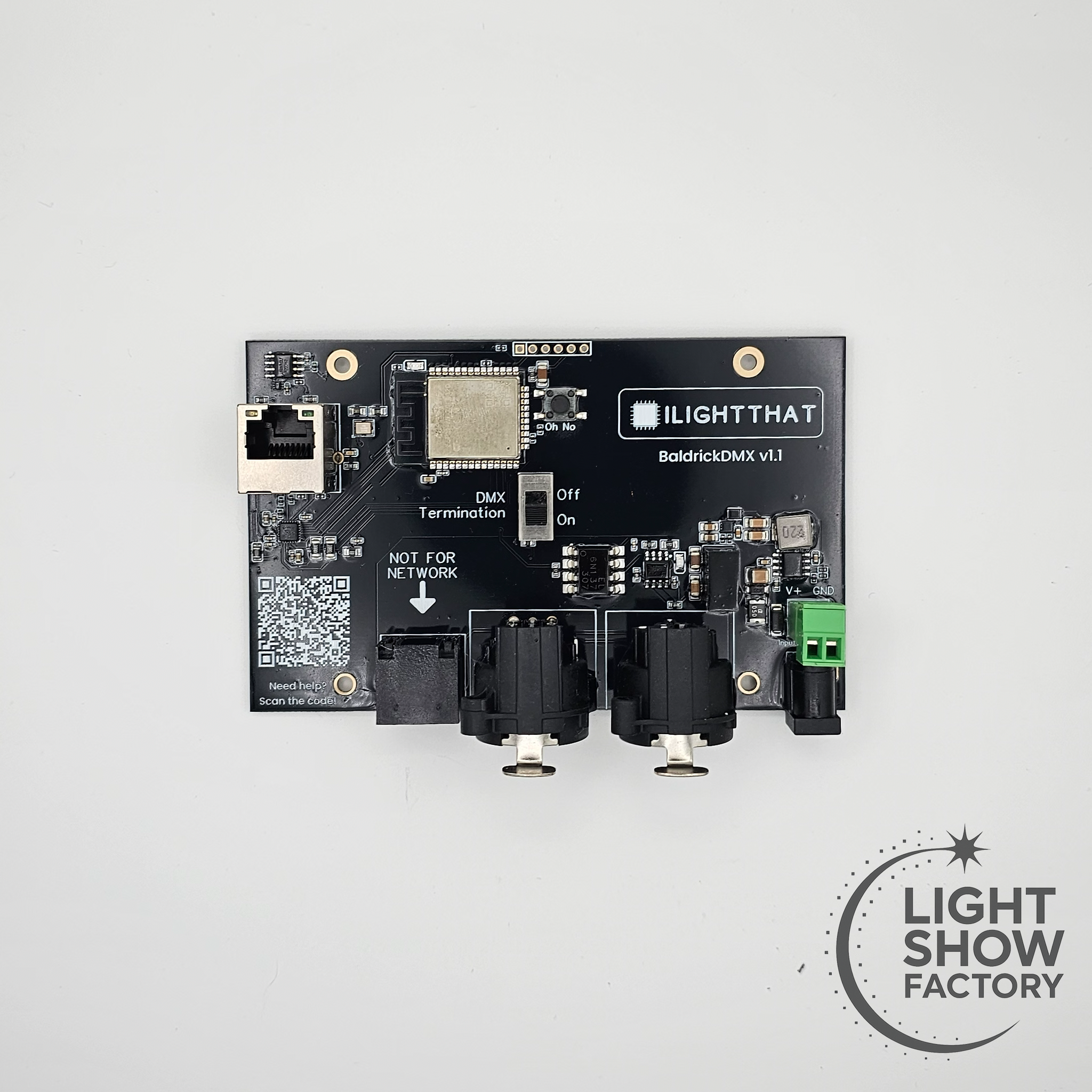

ILightThat BaldrickDMX DMX Controller

The BaldrickDMX from ILightThat is a compact standalone controller designed to easily integrate DMX devices into synchronized lighting displays. With support for standard DMX connections, modern lighting protocols, and direct xLights integration, the BaldrickDMX is an easy way to add DMX fixtures, moving heads, floods, and other stage lighting equipment to your show.

DMX outputs

Single output DMX connection on 3 ports:

• RJ45 output
• 3-pin Neutrik XLR output
• 5-pin Neutrik XLR output

Output configuration:

• Single DMX output available across all connector types
• Designed for standard DMX-compatible lighting equipment

Networking & protocol support

Supported protocols:

• DDP
• E1.31 / sACN
• Art-Net

Software integration:

• Direct push from xLights
• Compatible with modern pixel sequencing workflows

Power

Power input:

• Supports 5V–48V operation

Connection options:

• Barrel connector input
• 2-pin power connector

Protection & management:

• Onboard power management

Onboard features

Interactive features:

• Button and Turnip activated presets

Convenience:

• Compact footprint compatible with many smart receiver mounting systems
  Designed to integrate alongside other Baldrick Boards

Included in this package

• BaldrickDMX controller board

Notes

• Designed for standard DMX-compatible devices
• Compatible with xLights and modern E1.31 / Art-Net workflows
• No Raspberry Pi required
