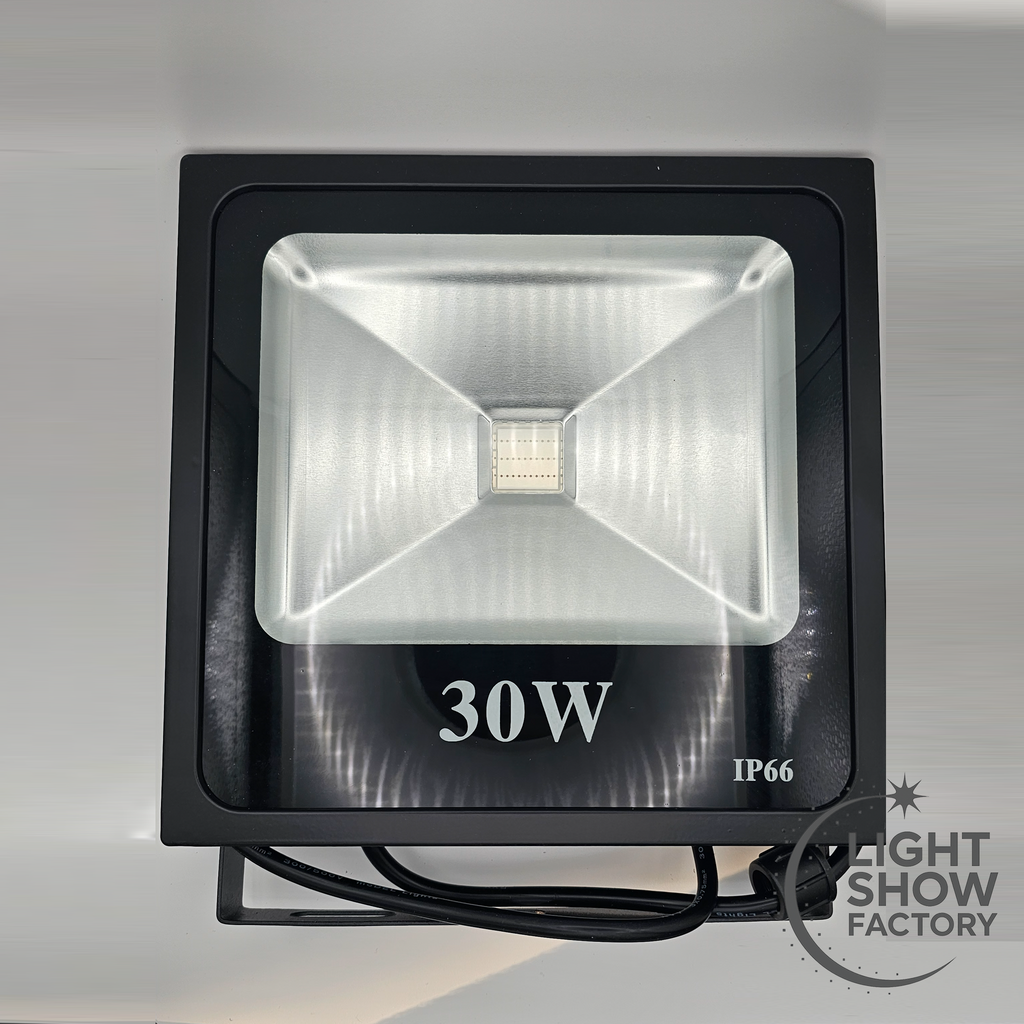

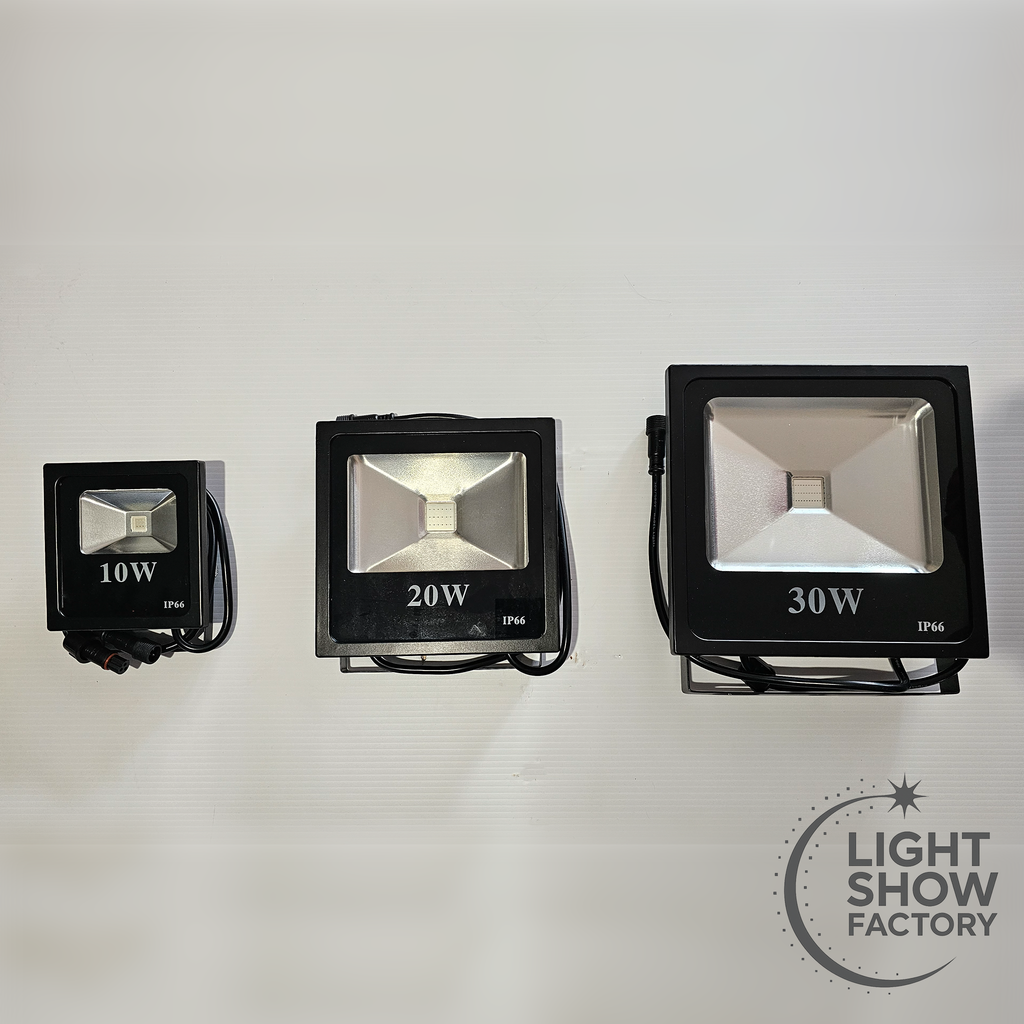

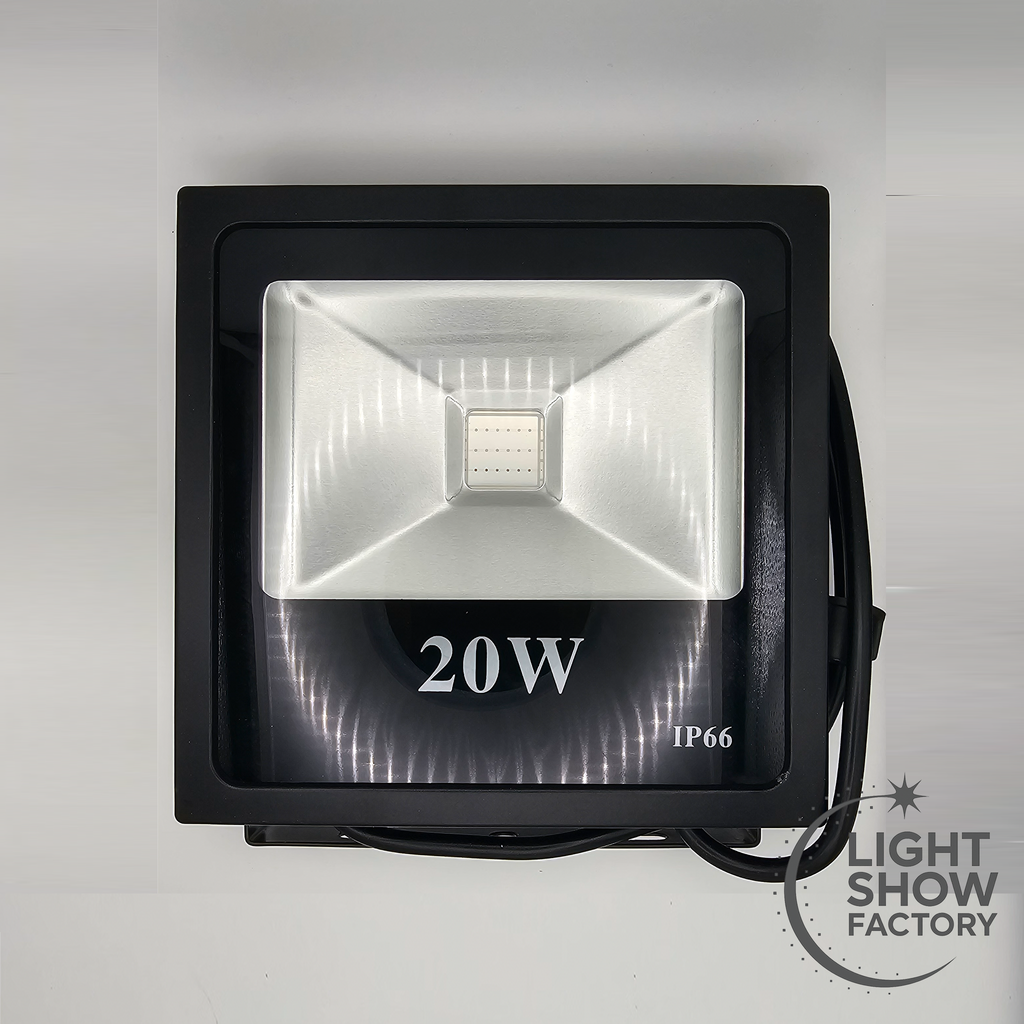

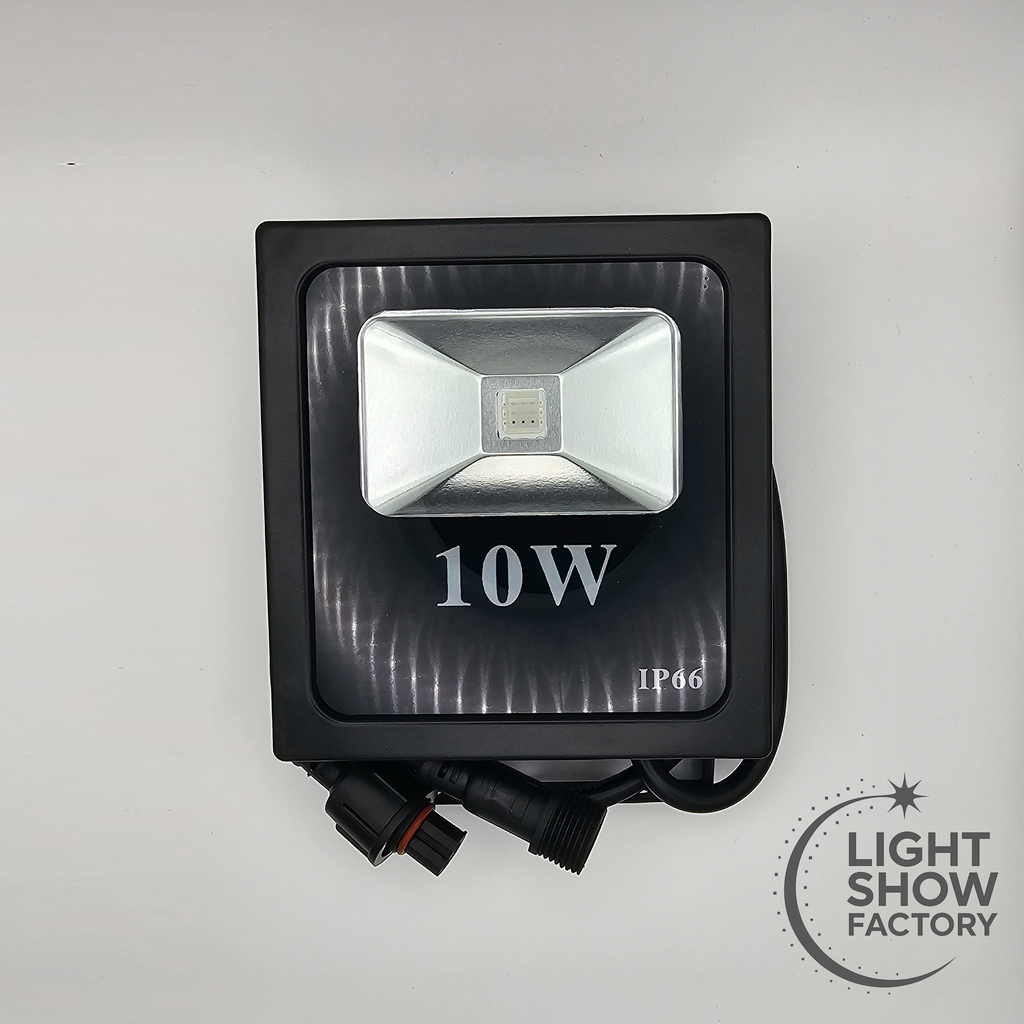

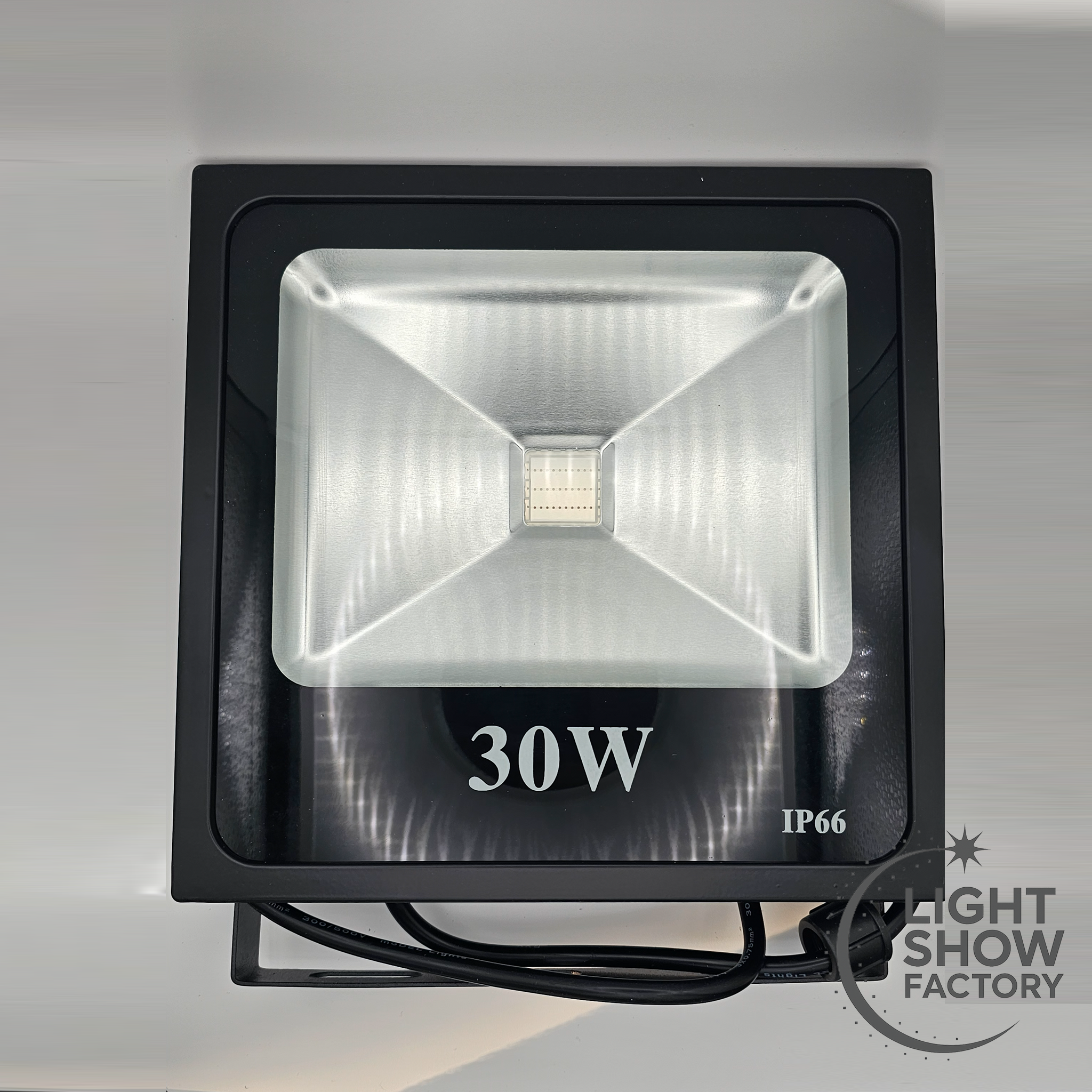

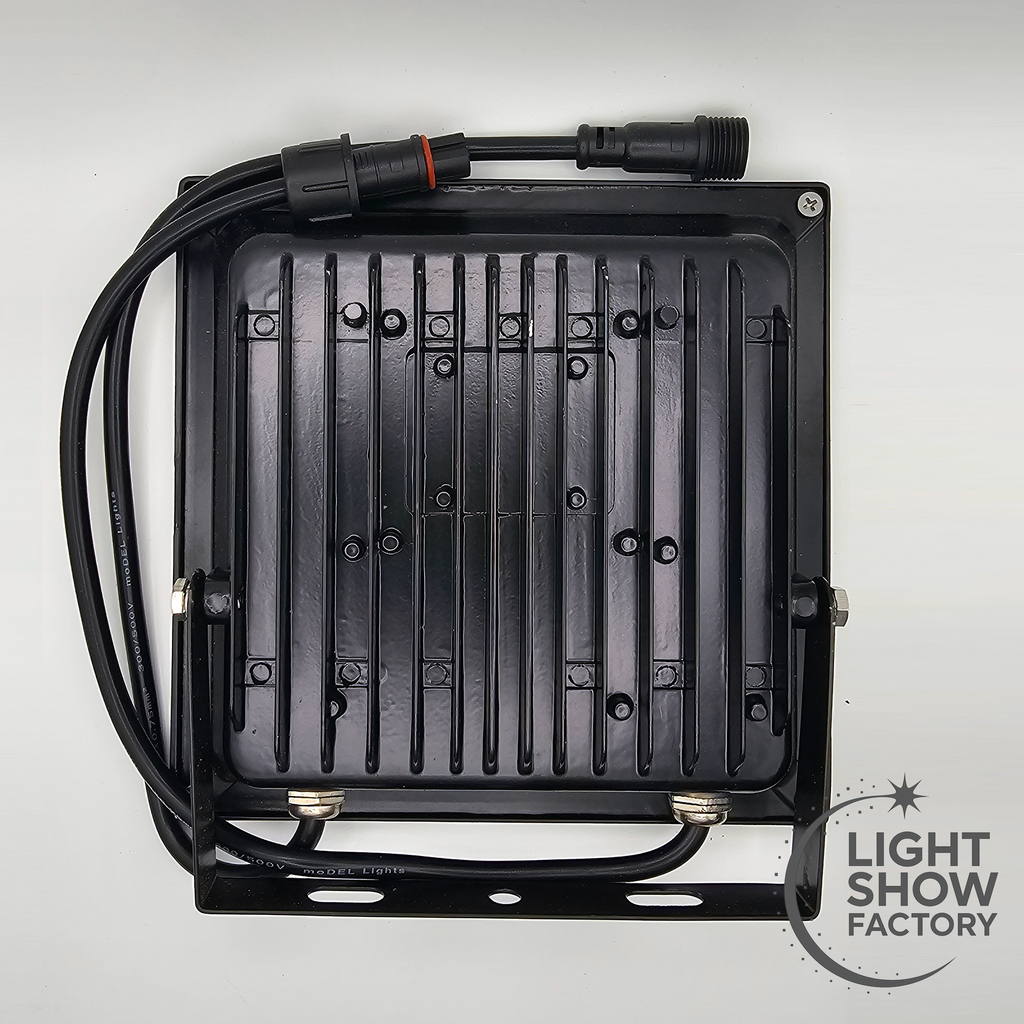

12V WS2811 RGB Flood Lights (10W / 20W / 30W) xConnect

Individually addressable RGB flood lights designed for wide-area illumination in light show displays. Suitable for washing walls, props, or large elements with uniform color output.

Key features

• WS2811
• Wide 120° beam angle

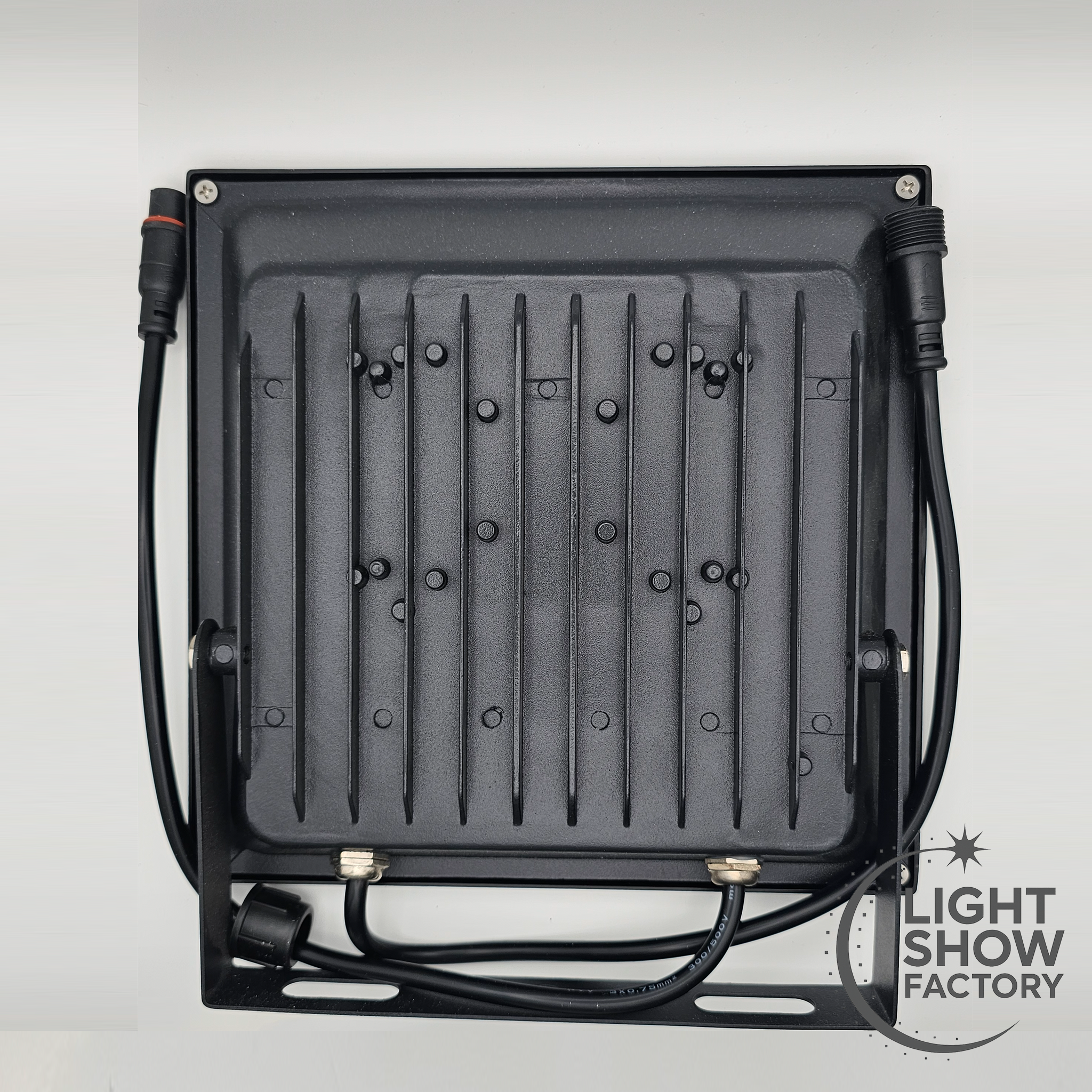

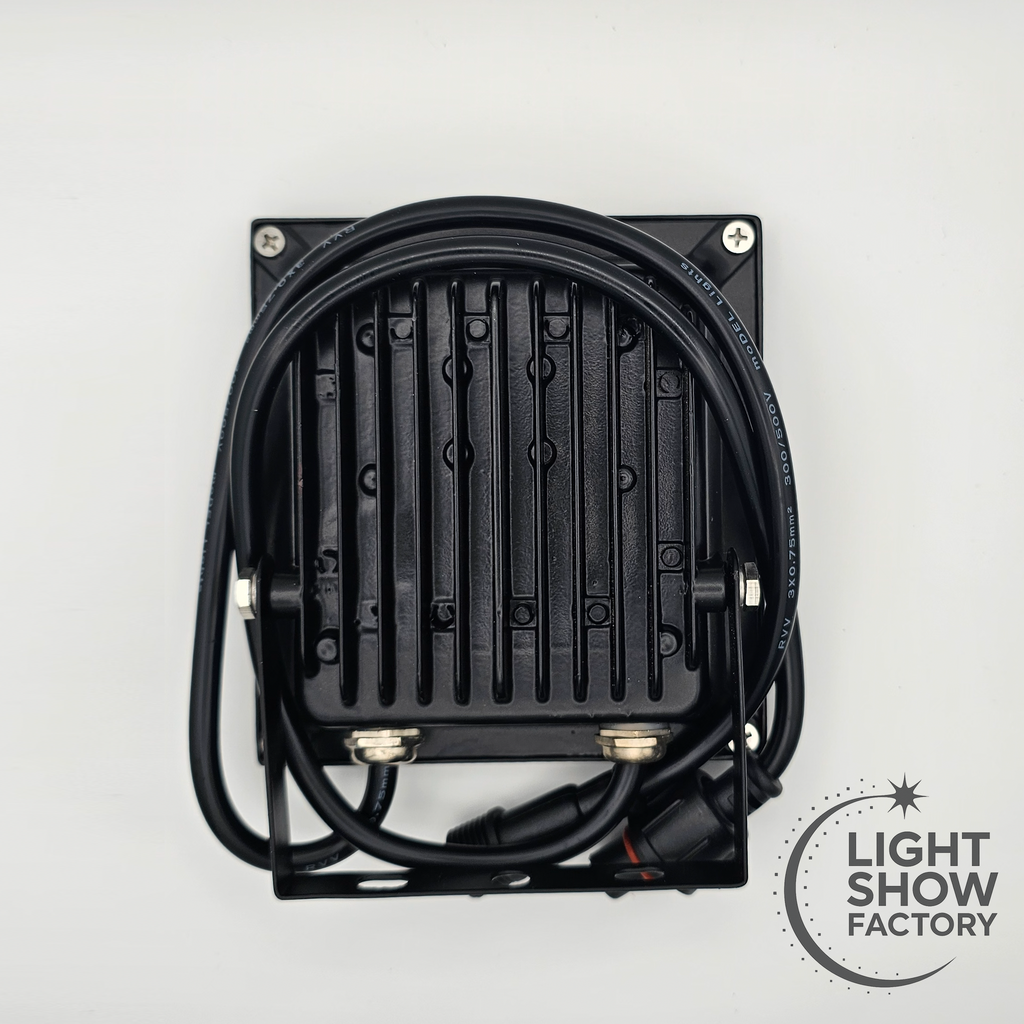

• Aluminum housing for heat dissipation
• Designed for outdoor use

Technical specifications

• Input voltage: 12V DC
• Power options: 10W / 20W / 30W (single integrated LED chip)
• Control protocol: WS2811
• Beam angle: 120°
• Housing material: Aluminum
• Ingress protection: IP 65 (30W) or IP66 (10W, 20W and 30W)
• Operating temperature: −30°C to 50°C
• Operating humidity: 10% to 90% RH
• Rated lifespan: ~35,000 hours
• Connectors: xConnect

Physical specifications

• 10W: ~ 4.65" x 5" x 2"
• 20W: ~ 7.25" x 7" x 2"
• 30W IP65: ~ 7.75" x 9" x 2"
• 30W IP66: ~ 9" x 9" x 2"

Physical dimensions are indicative and may vary depending on manufacturing. If this is critical to your build, please reach out before ordering.

Warranty

• 1-year limited warranty
• Applies to unmodified and uncut products, including labels
