Extensions

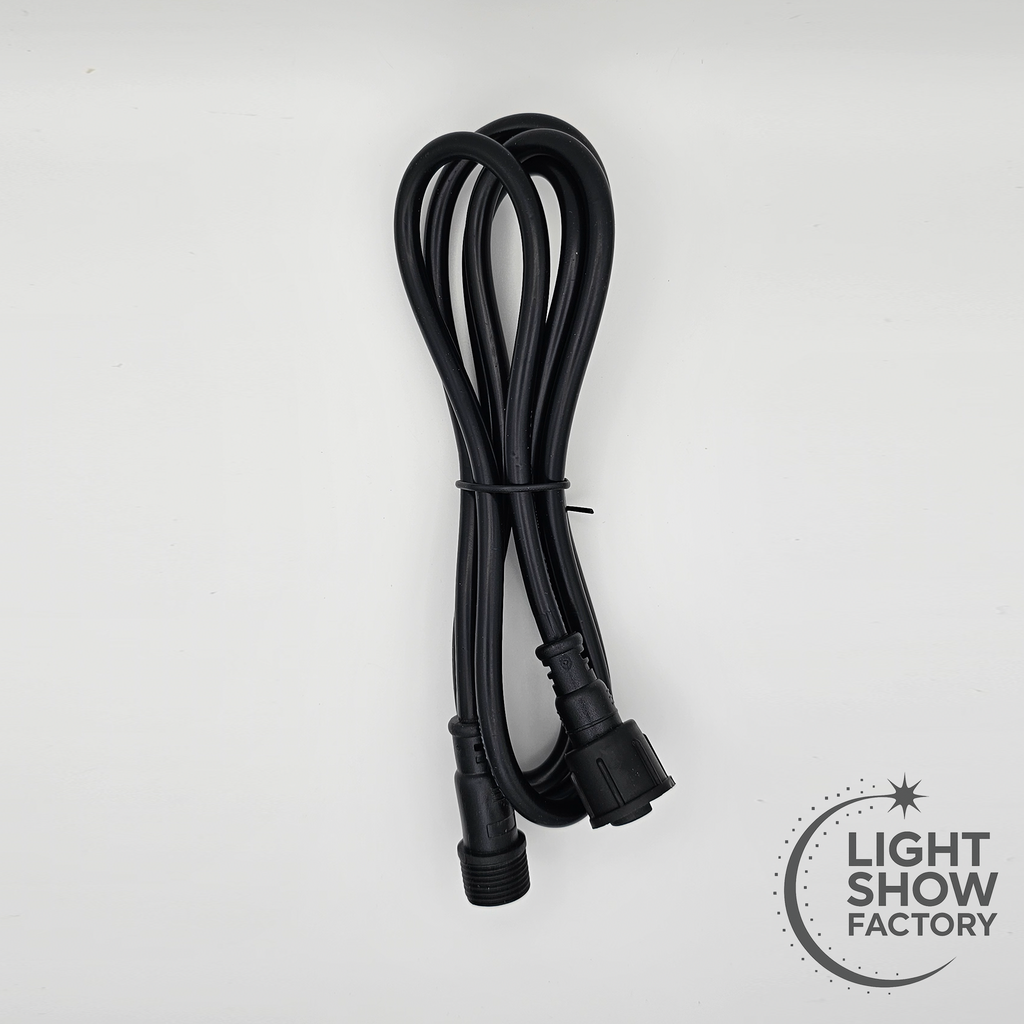

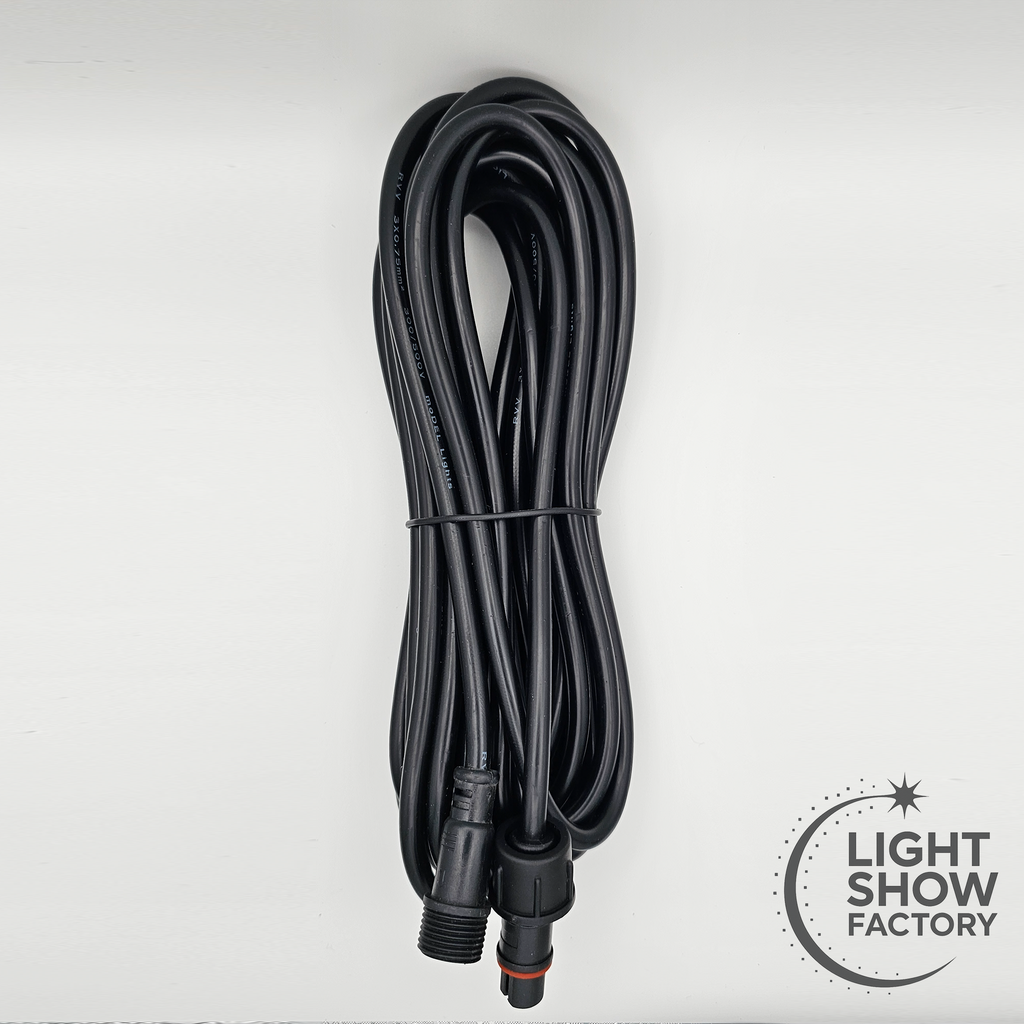

Pixel Extension Cables

Extension cables for extending connections between controllers, pixel strings, and props.

Key features

• Extends connections between pixel components
• Available for power only or power + data
• Maintains waterproof connections
• Multiple length options

Technical specifications

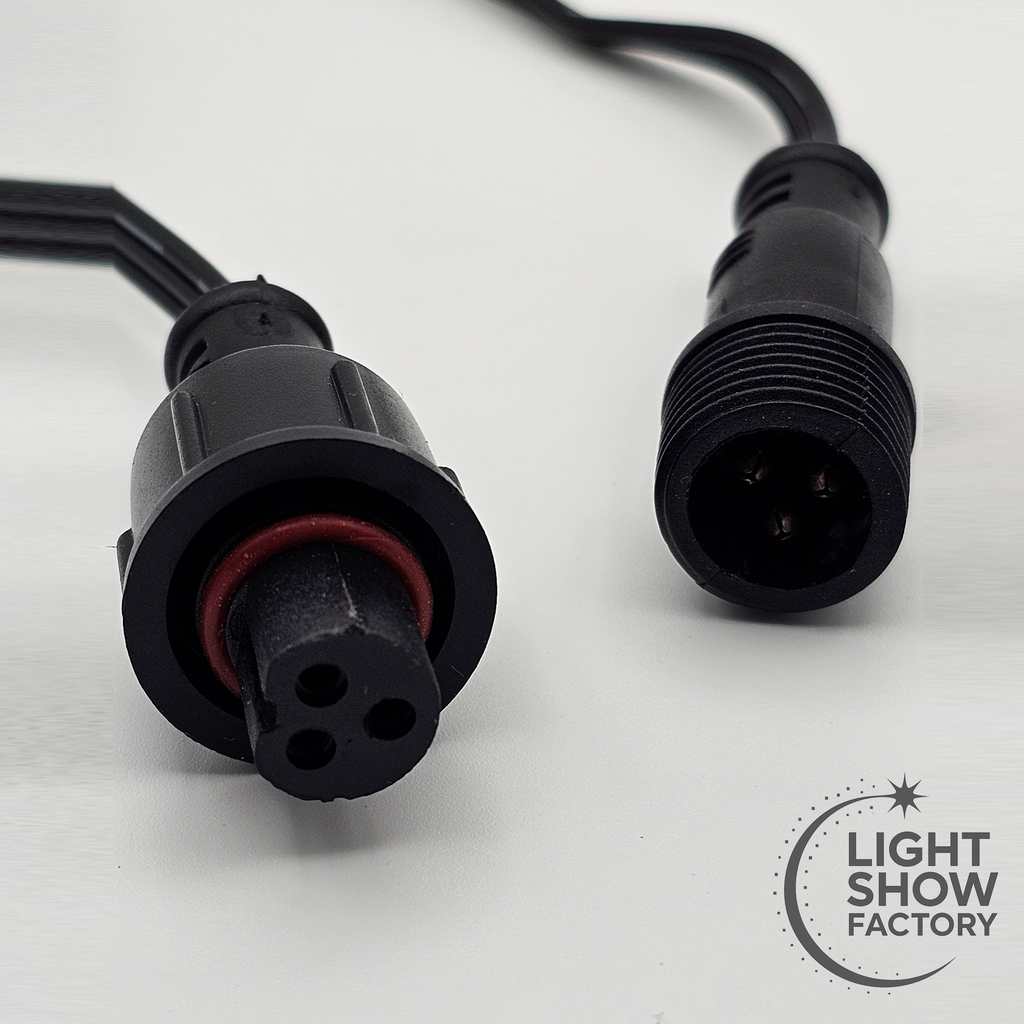

• Connector type: xConnect or Ray Wu (select at purchase)
• Available lengths: 5 ft / 10 ft / 20 ft
• Conductor options:
  • 2-core: Power only (power injection)
  • 3-core: Power + data

Typical use cases

• Extending distance from controller to first pixel
• Power injection from a remote power supply
• Clean, modular wiring for props and enclosures

Notes

• 2-core extensions do not carry data
• Match connector type and conductor count to your application
