CORO - Pixel Pole - 100 Pixels

CORO - Pixel Pole - 100 Pixels

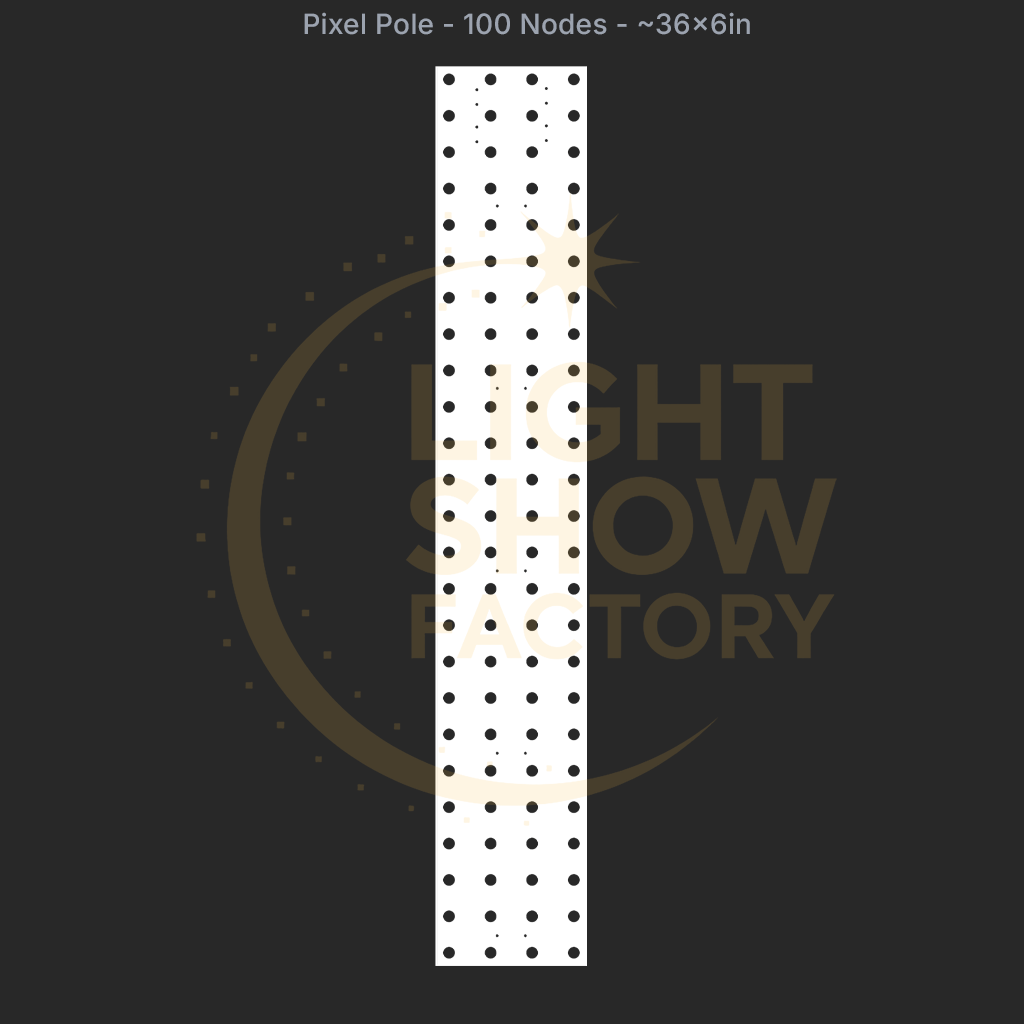

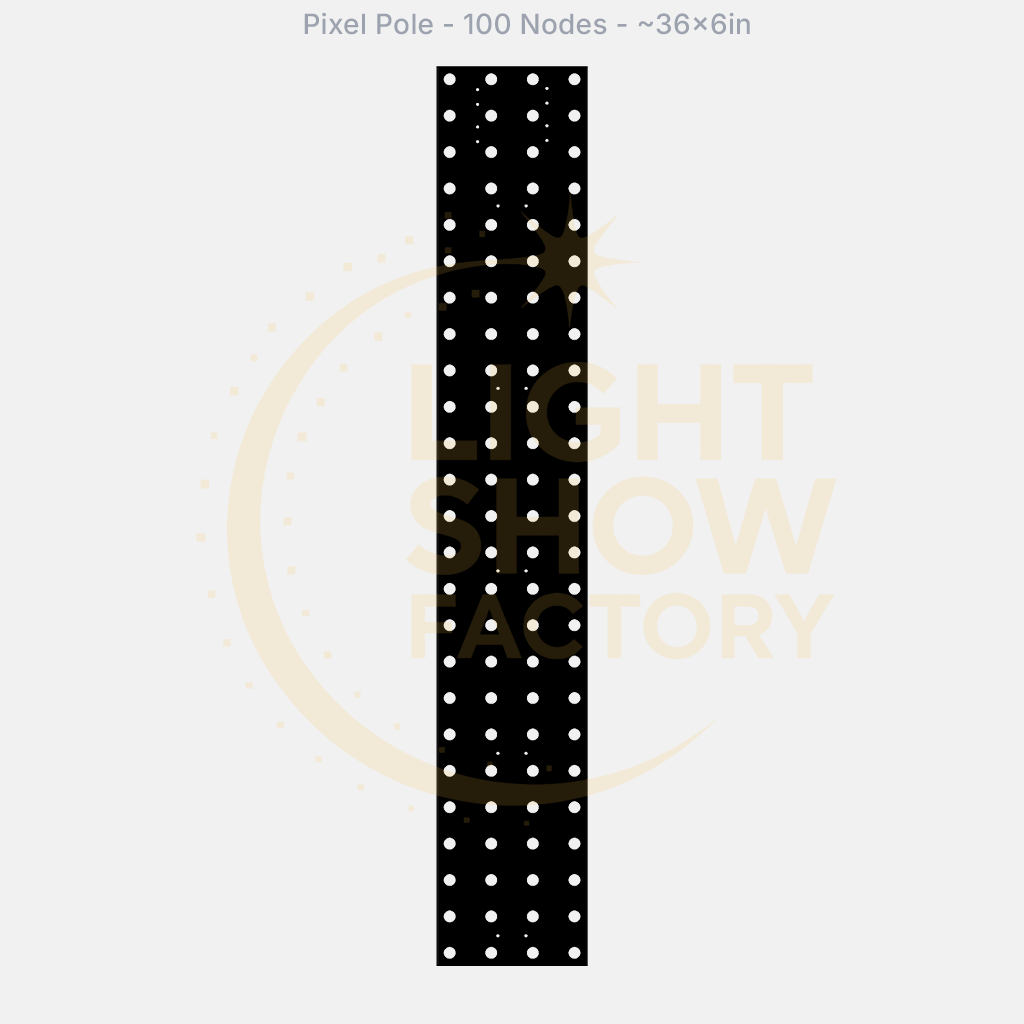

Pre-drilled coroplast Pixel Pole designed for 100 × 12mm bullet pixels. Available in black or white coroplast. Pixels not included.

Specifications

• Node count: 100
• Compatible pixels: 12 mm bullet pixels
• Material: Coroplast (black or white)
• Thickness: 10 mm
• Approx. size: 36" x 6"

What’s included

• CNC-cut and pre-drilled coroplast prop

What’s not included

• Pixels
• Wiring
• Mounting hardware

xLights model

• This prop uses the built-in xLights matrix model, no specific xmodel required.
• If you wire it from the bottom left and zig zag up and down, use these parameters:

  • Direction: Vertical
  • Alternate Nodes: Unchecked
  • Don't Zig Zag: Unchecked
  • # Strings: 1
  • Nodes/Strings: 100
  • Strands/Strings: 4
  • Starting Location: Bottom Left

Production notes

• Made to order
• Designed and produced in Canada
• Typical production time: up to 2 weeks

Usage note

• xLights layout files are provided for use with Light Show Factory coroplast props.
• They may be used in personal or commercial displays.
• Redistribution, resale, or use with third-party or competing products is not permitted.
