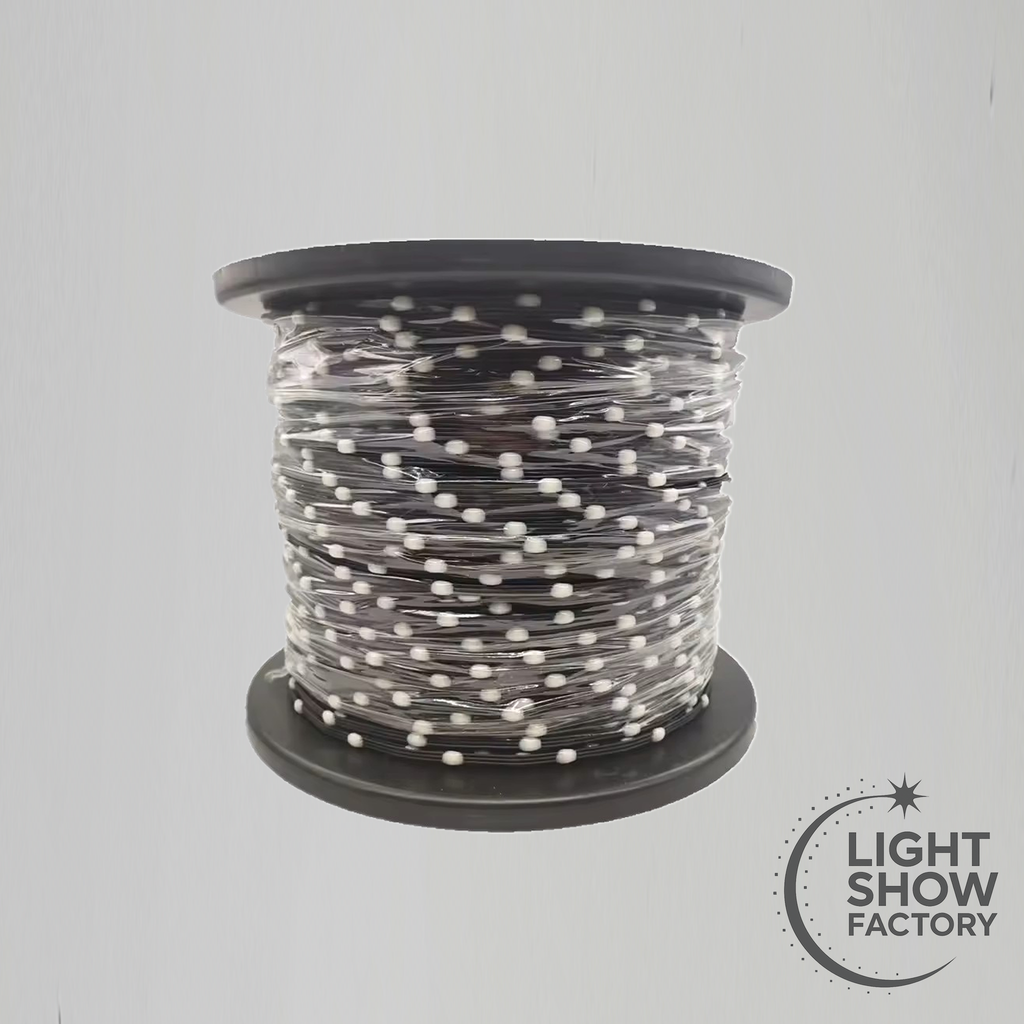

Seed Pixels Rolls - 12V - 18AWG - WS2811

12V WS2811 Seed Pixels

Individually addressable RGB seed pixels designed for high-density lighting applications where small size, flexibility, and cut-to-length installation are required. Seed pixels are commonly used for matrices, outlines, and compact props where traditional bullet or square pixels are too large.

Key Features

• WS2811 integrated control IC
• 12V DC design with very low power consumption
• Ultra-compact seed pixel form factor
• Designed to be cut to length during installation
• Flexible wiring for dense layouts and custom spacing

Technical Specifications

• IC type: WS2811
• Input voltage: 12V DC
• Power consumption: 0.1 W per LED
• LED type: RGB
• Light emission: 180°
• Addressing: Every LED is individually addressable
• Available quantities: Roll of 1,000 LEDs (continuous)
• Spacing options: 1", 2", or 4"
• Wire gauge: 18 AWG
• Operating temperature: −20°C to 50°C
• Ingress protection: IP65
• LED lifespan: 50,000+ hours

Installation & Power Notes

• Seed pixels are designed to be cut — every LED may be cut individually
• Power injection is recommended approximately every 100 LEDs, depending on brightness and usage

Warranty Information

• 2-year warranty against manufacturing defects
  • Seed pixels are exempt from the uncut requirement, as they are designed to be cut during installation

Important Notes

• Seed pixels require more frequent power injection than bullet or square pixels
• IP65 rating means they are suitable for outdoor use but not for prolonged submersion
