RJ45 Network Pass-Through Gland

RJ45 Network Pass-Through Gland

These RJ45 network pass-through glands provide a clean and weather-resistant connection point for Ethernet and other RJ45-based connections entering or exiting a controller enclosure.

Designed for outdoor light show installations, they allow network connections to be made at the exterior of the enclosure without having to route a complete Ethernet cable through a standard cable gland. Each version includes a protective screw-on dust cover for the external RJ45 connection when not in use.

Three configurations are available to accommodate different enclosure layouts: straight, 90°, or with an attached internal cable.

Available configurations

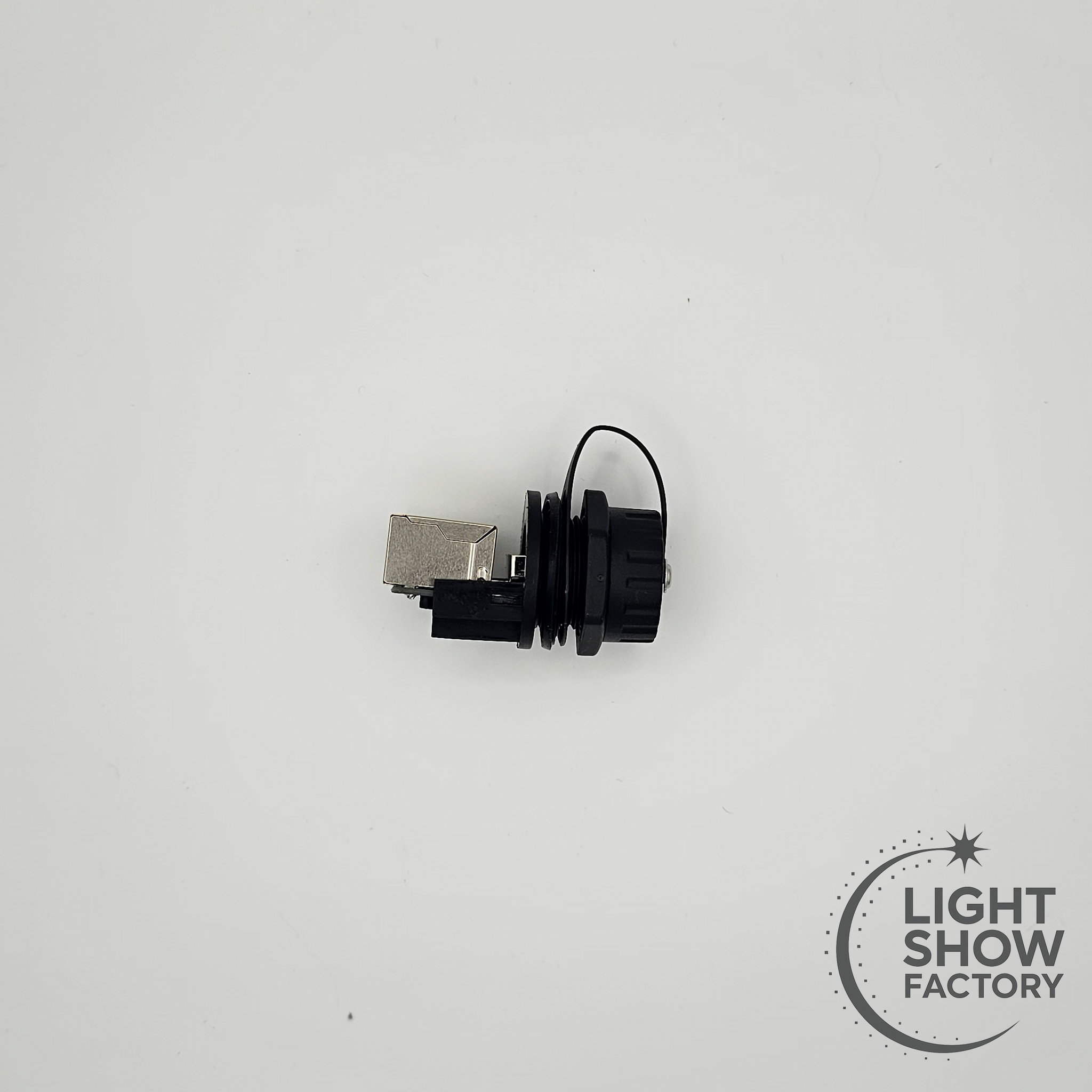

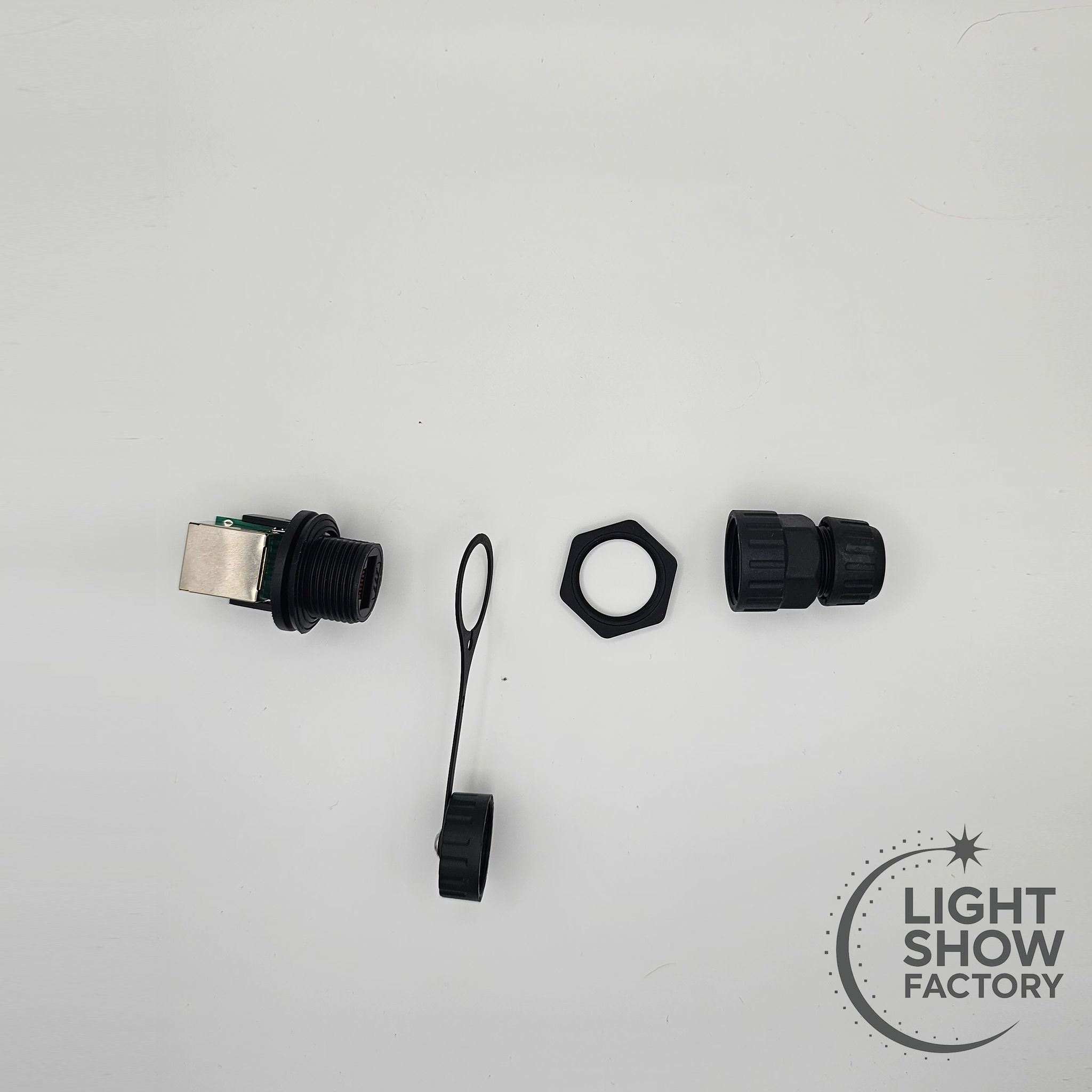

• Straight — RJ45 female connection on both sides; requires a separate internal Cat5/Cat6 patch cable

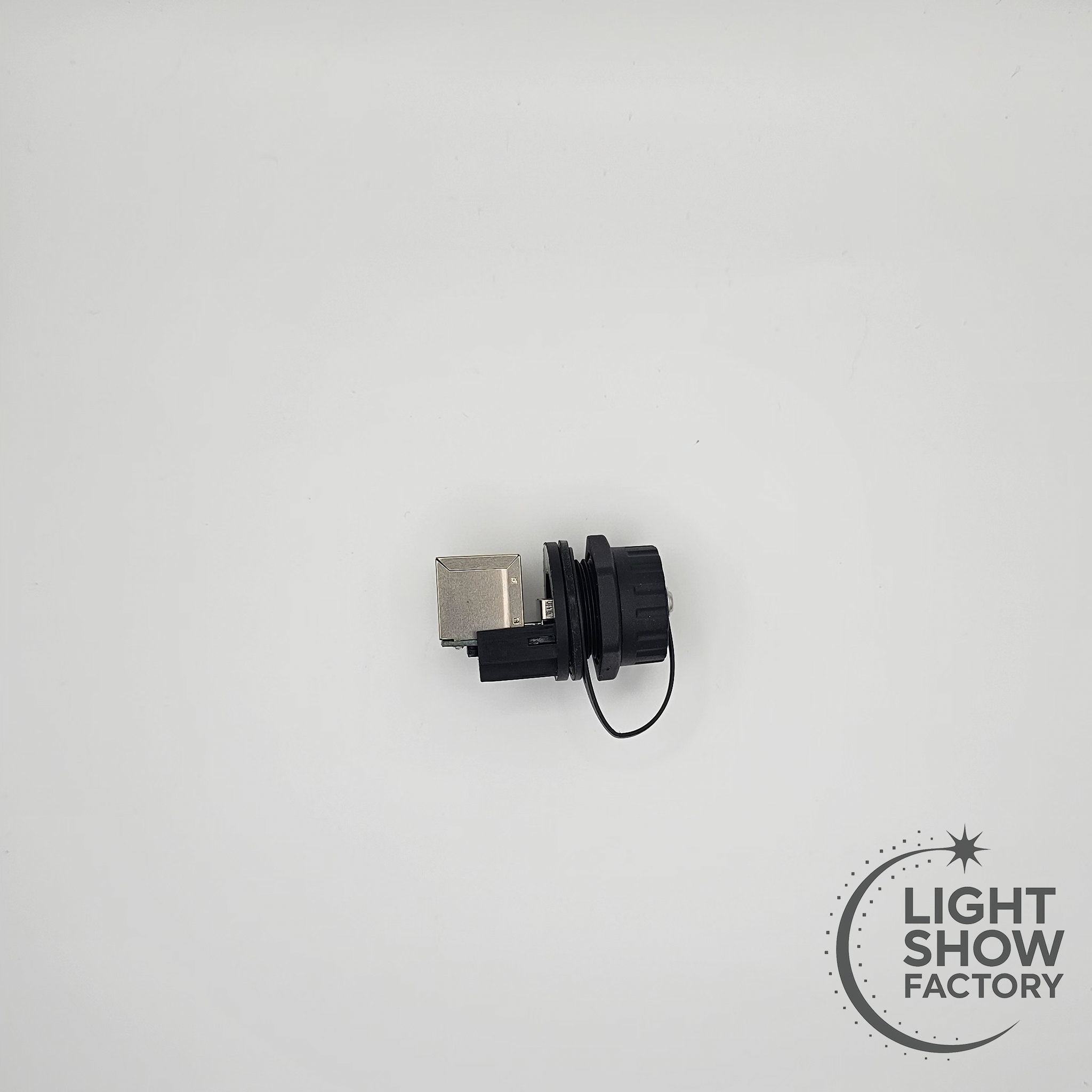

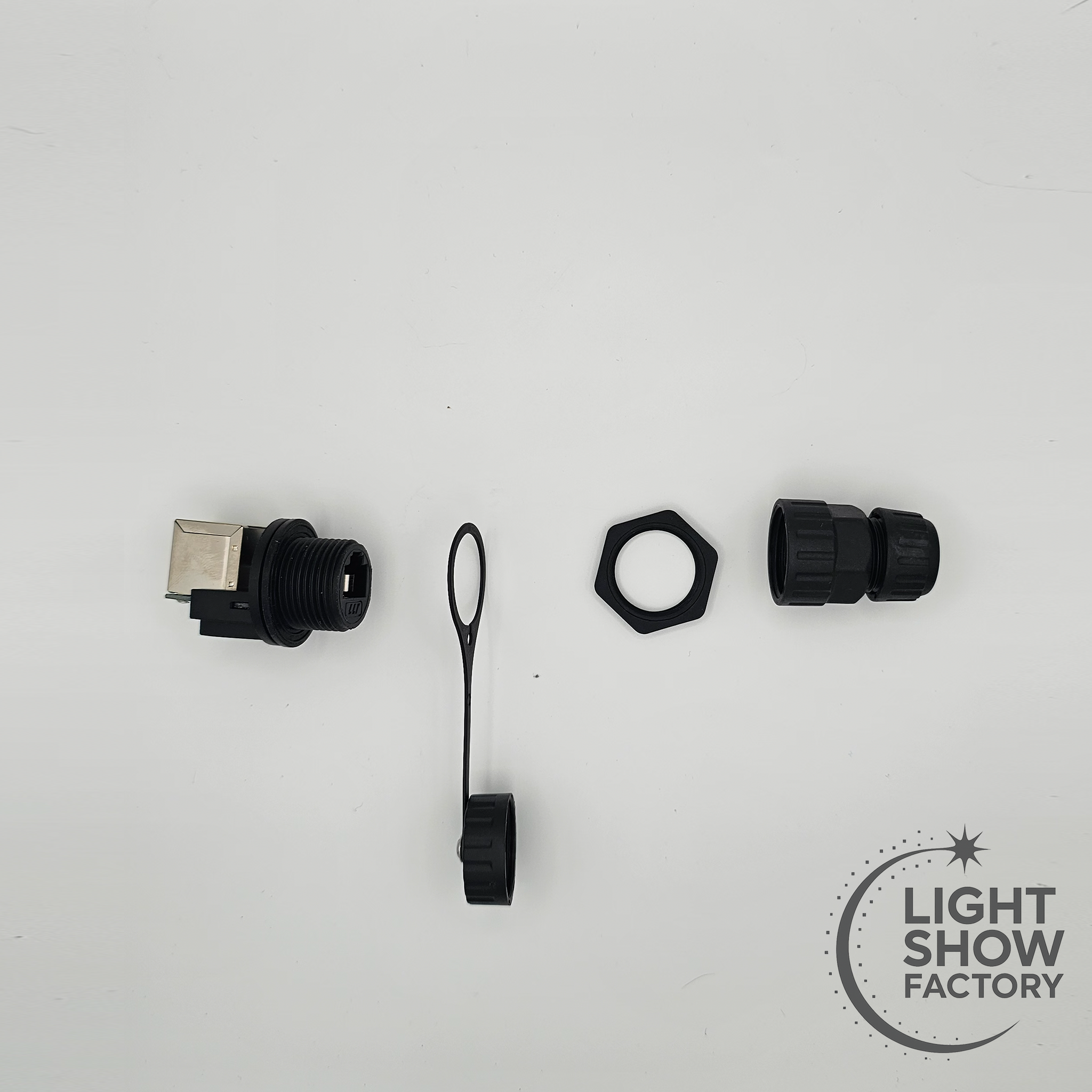

• 90° — Right-angle design for installations where enclosure space or cable routing is limited; requires a separate internal Cat5/Cat6 patch cable

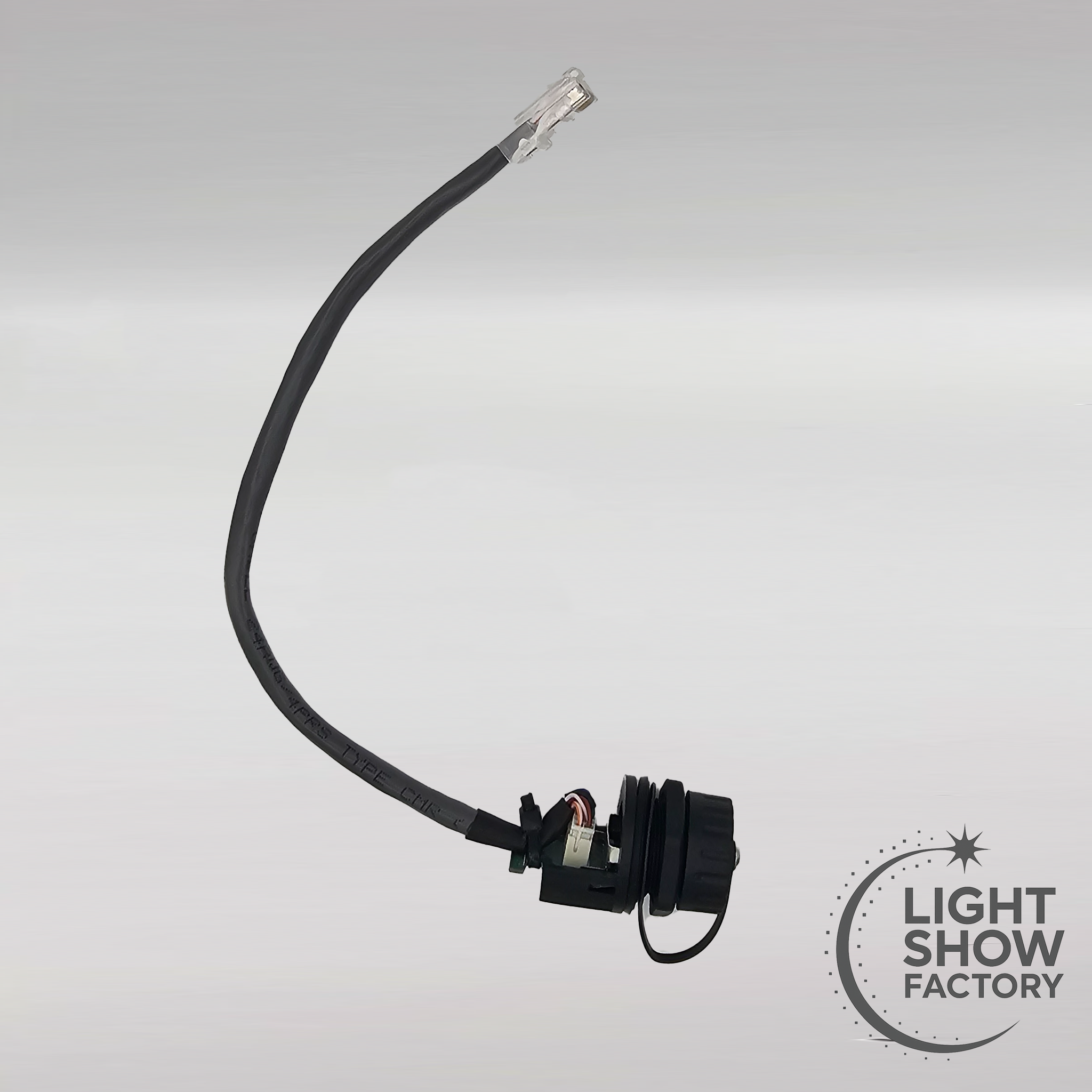

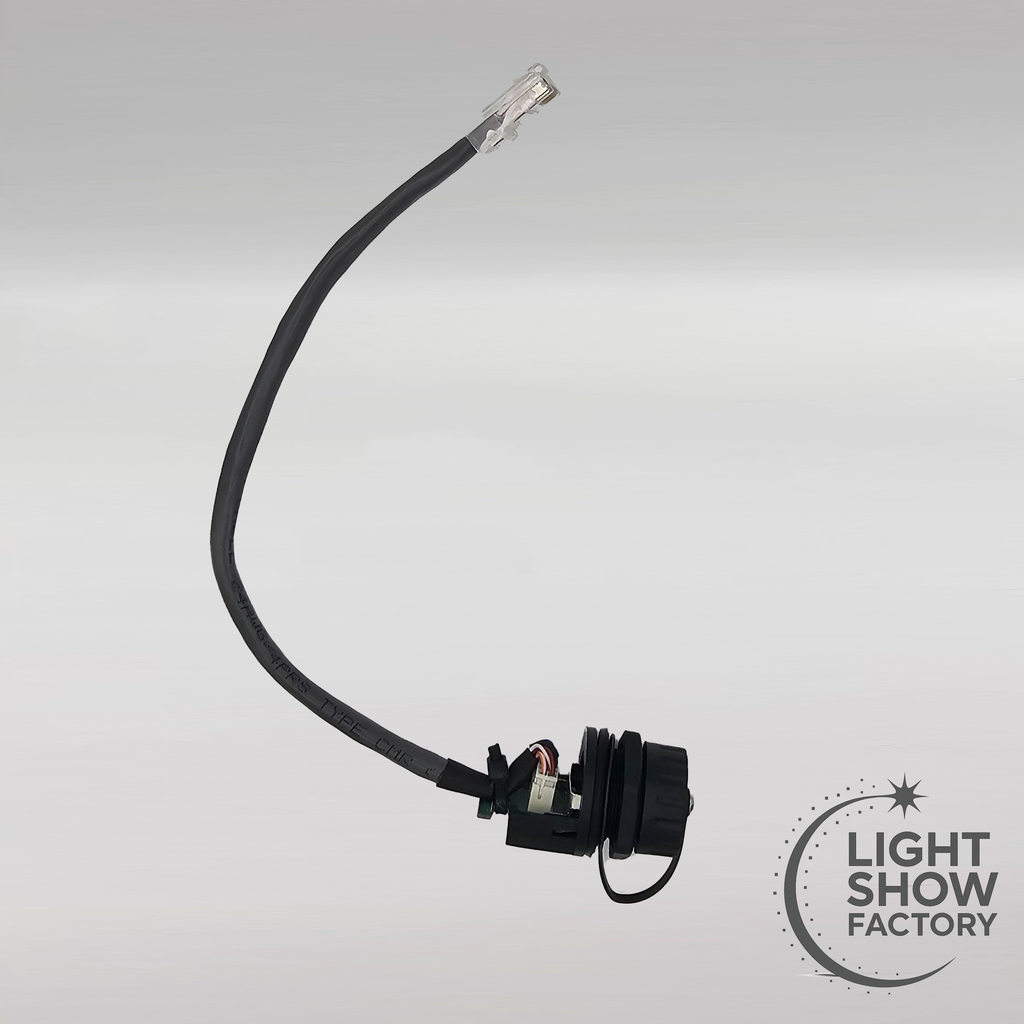

• Attached Cable — External RJ45 pass-through with an integrated 20 cm (7.9") network cable for direct connection to your controller or other equipment

Specifications

• Connector: RJ45
• Protection rating: IP67
• Compatibility: Cat5 / Cat5e / Cat6 network cables
• Screw-on protective dust cover
• Locking nut for enclosure mounting
• Suitable for indoor and outdoor controller enclosures

Typical use cases

• Ethernet connections to pixel controllers
• Controller enclosure network connections
• Differential receiver and RS485 connections using RJ45
• DMX and other RJ45-based data connections
• Custom outdoor light show enclosures

Installation

Install the pass-through gland through a properly sized hole in the enclosure and secure it using the locking nut from the inside.

For the Straight and 90° versions, connect a separate Cat5/Cat6 patch cable between the internal RJ45 connector and your controller or other network equipment.

The Attached Cable version includes the internal cable, allowing it to connect directly to your equipment without requiring a separate patch cable.

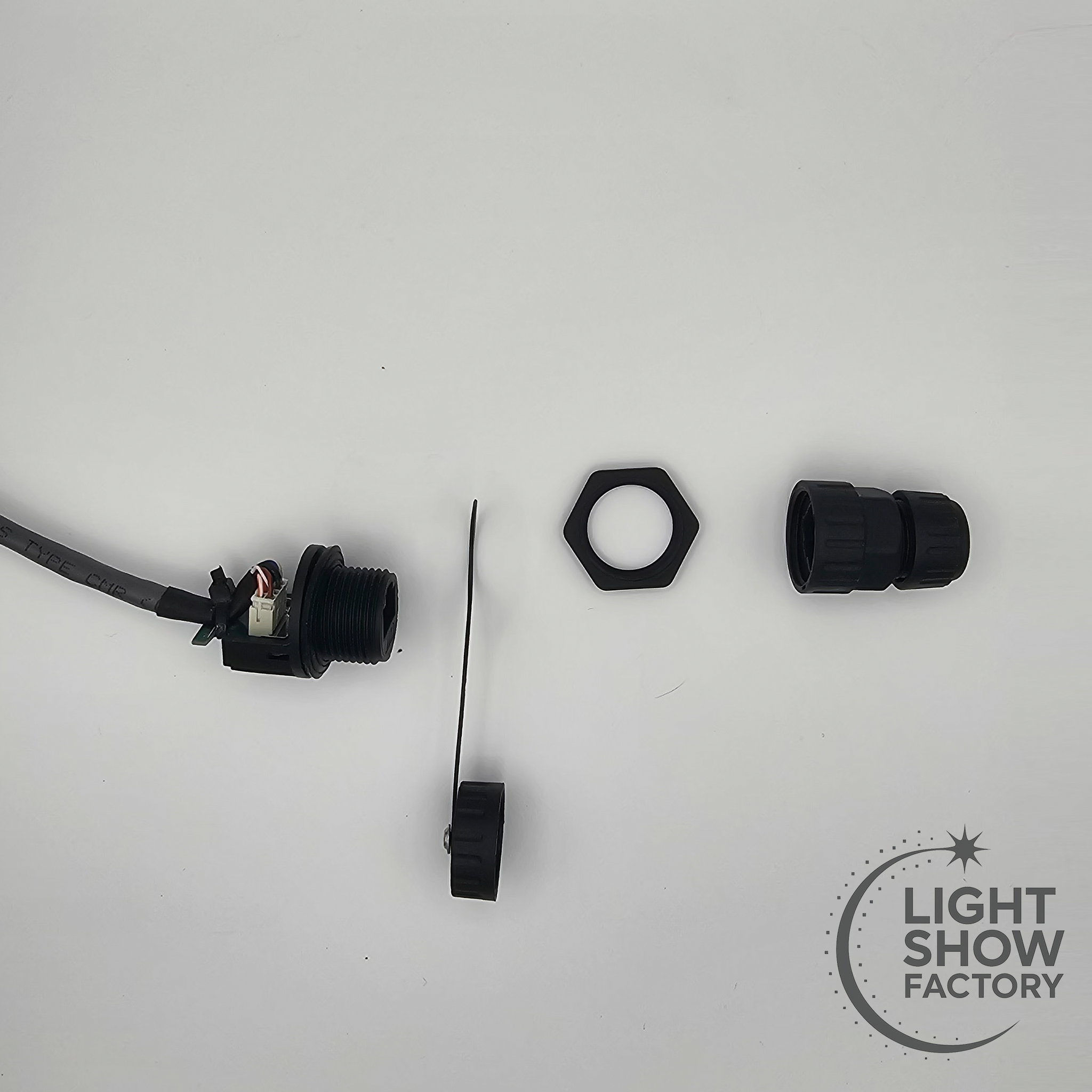

Included

• 1 × RJ45 network pass-through gland
• 1 × screw-on dust cover
• 1 × locking nut
• 20 cm (7.9") internal network cable with the Attached Cable variant only

Notes

• Straight and 90° variants do not include an internal patch cable
• Attached Cable variant includes an integrated 20 cm (7.9") internal network cable
• Cat5/Cat6 patch cables sold separately where required
• Keep the protective dust cover installed when the external RJ45 connection is not in use
• Suitable for Ethernet and other compatible RJ45-based connections
