Mean Well Power Supply - 350W

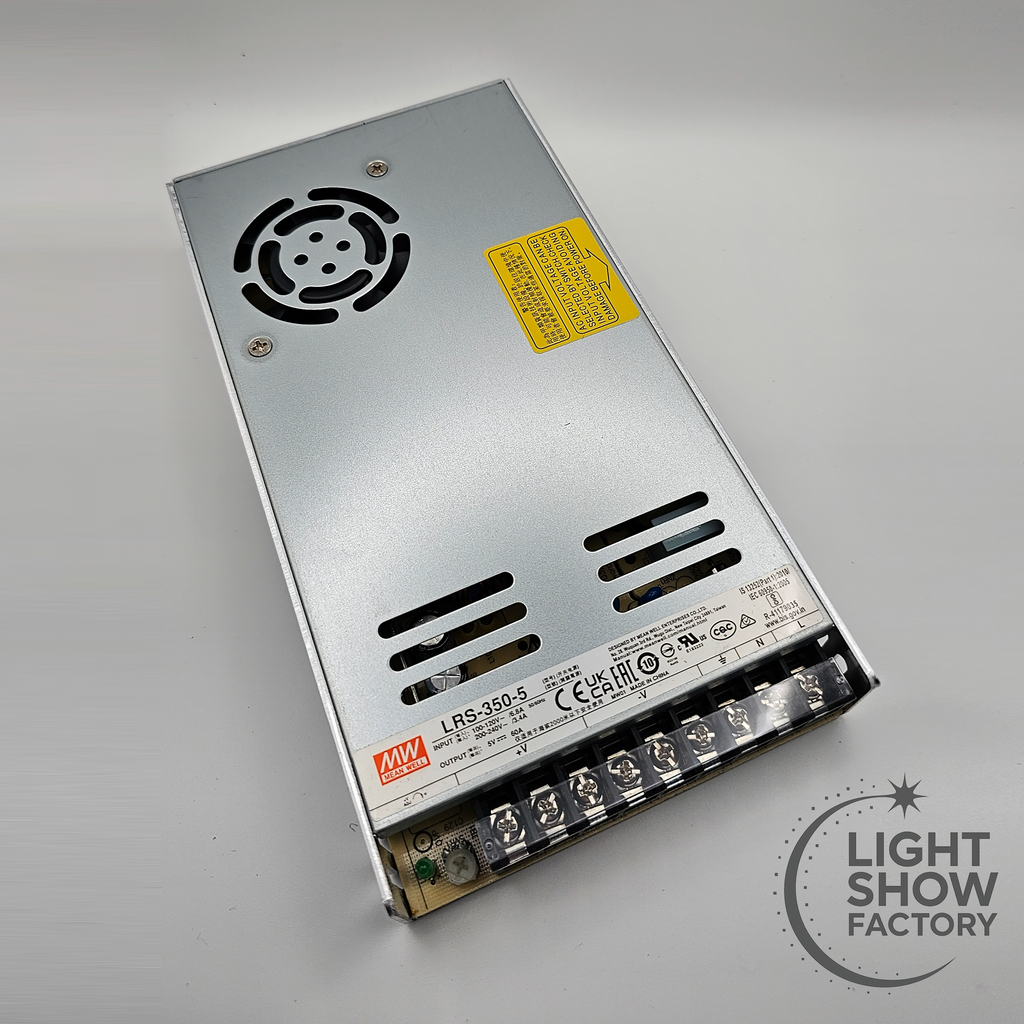

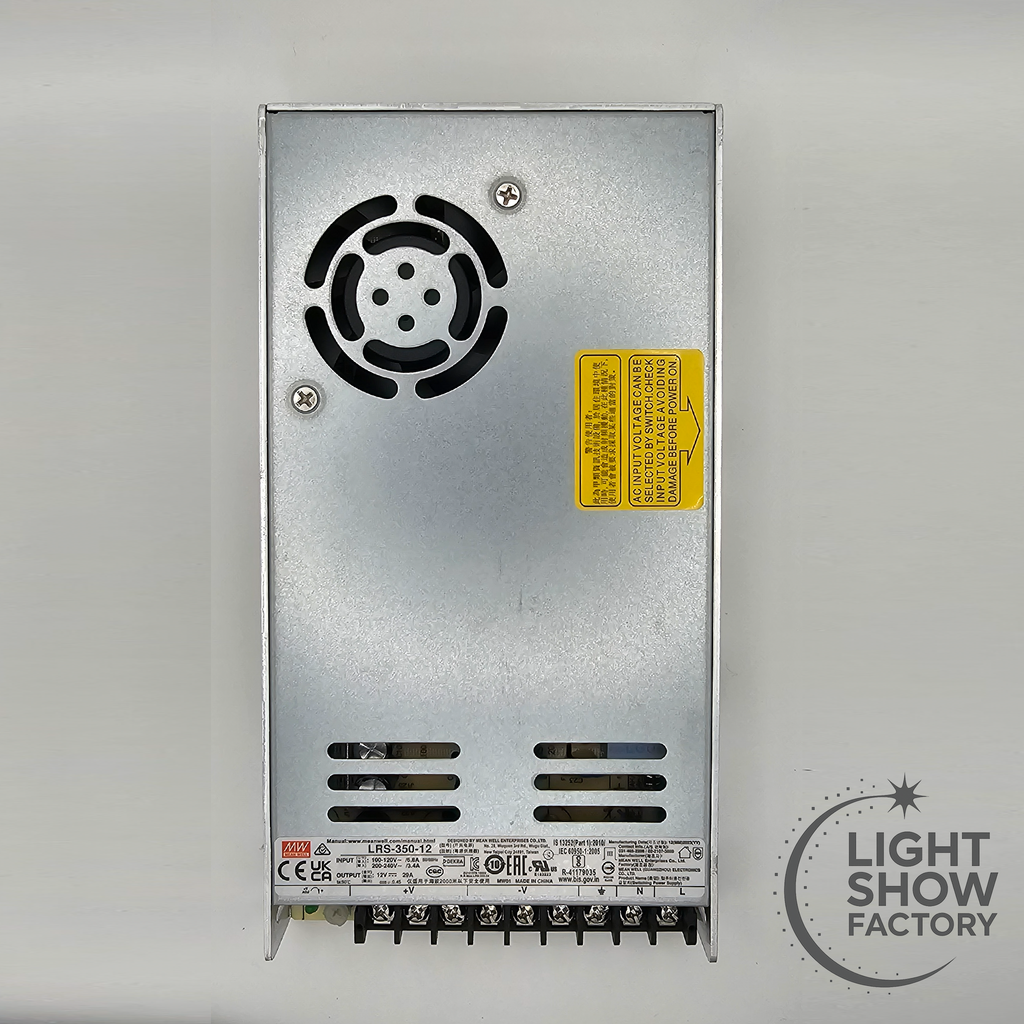

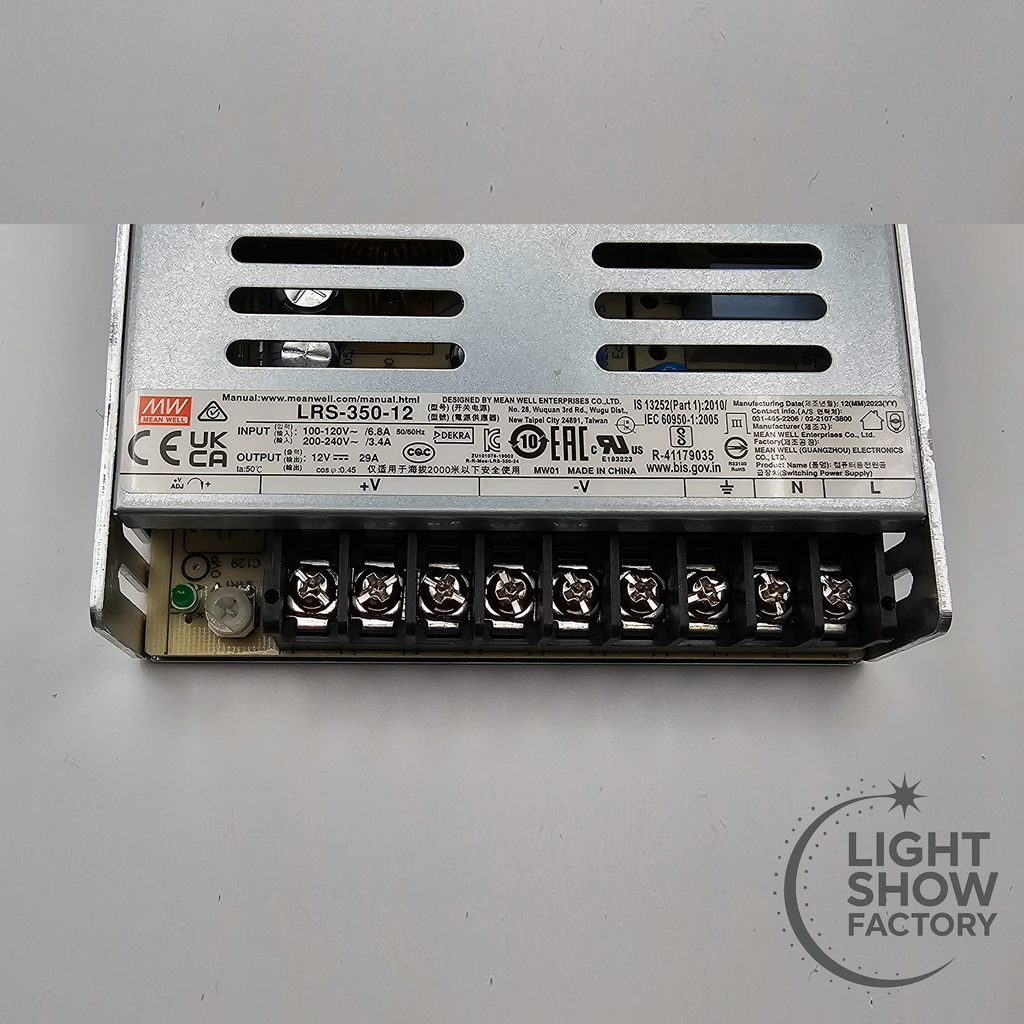

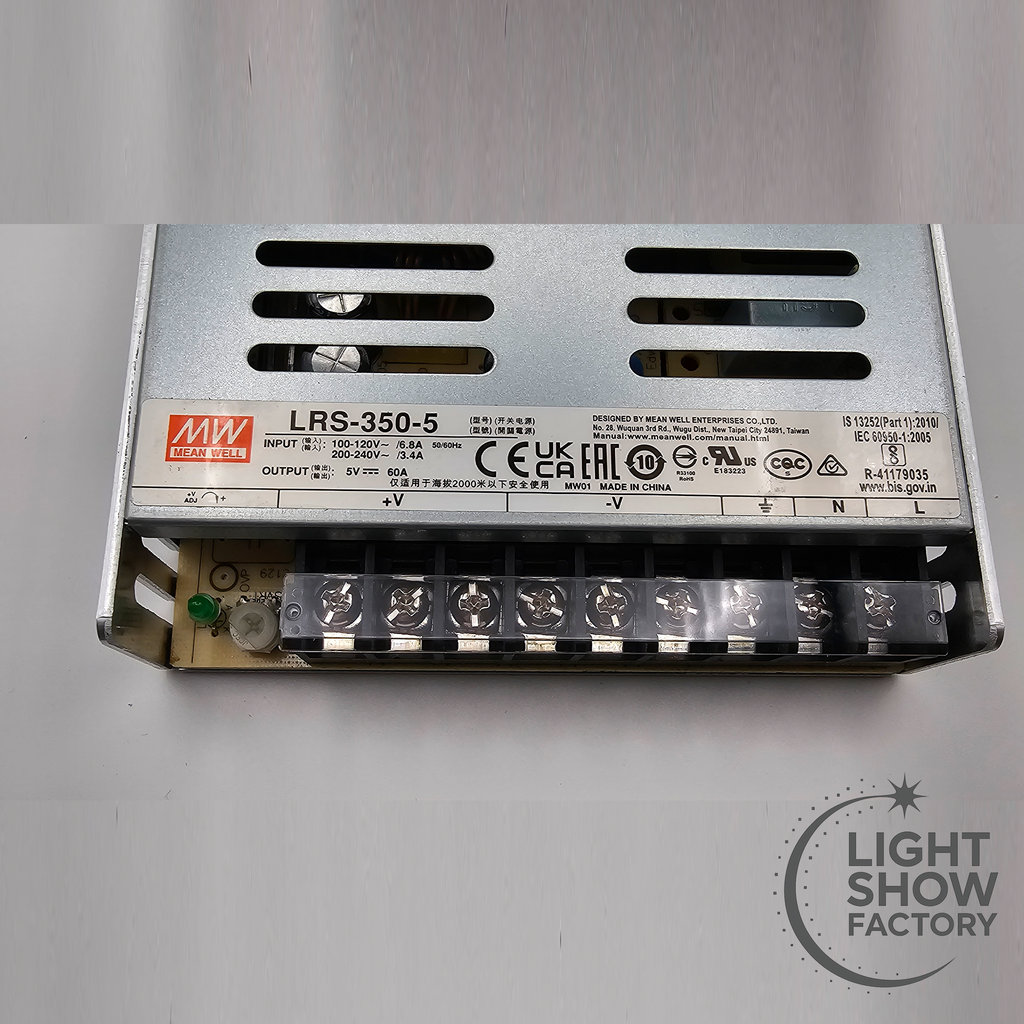

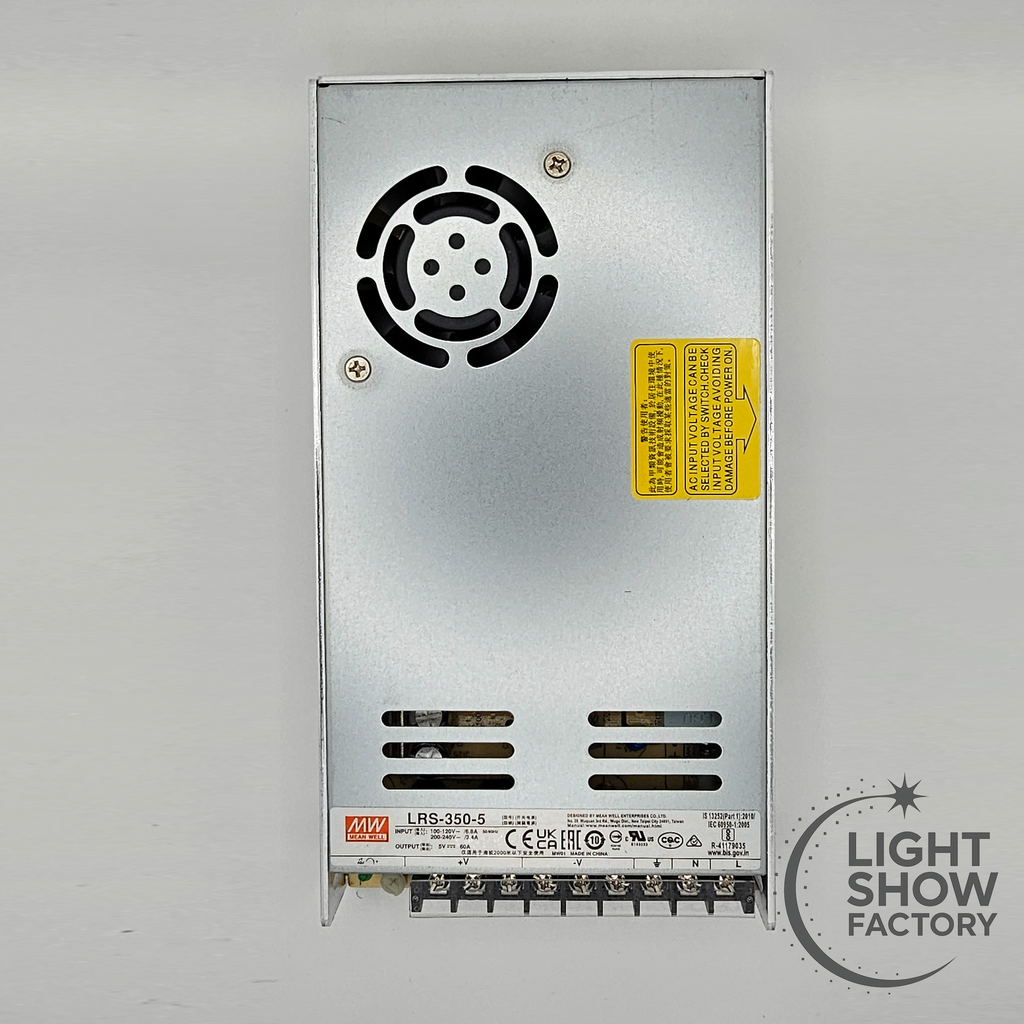

Mean Well LRS-350 Power Supply

Mean Well LRS series power supplies are widely used in light show installations for their reliability and wide operating temperature range. Suitable for use in custom enclosures to power pixel controllers and lighting equipment.

A full technical datasheet is available from MeanWell here.

Key features

• Industrial-grade switching power supply
• Wide AC input range with selectable 120V / 240V operation
• Compact, low-profile metal enclosure
• Designed for continuous operation

Electrical specifications

• AC input voltage:
  • 90–132 VAC or 180–264 VAC
  • Manual selector switch (120V / 240V)
• Frequency range: 47–63 Hz
• Efficiency: ~85%
• AC current: 6.8 A @ 115 VAC
• Inrush current: 60 A @ 115 VAC
• Output voltage: 5V DC or 12V DC (select at purchase)
• Rated power: 350 W (model-dependent current rating)

Environmental specifications

• Operating temperature: −25°C to +70°C
• Operating humidity: 20% to 90% RH
• Storage temperature: −40°C to +85°C

Mechanical specifications

• Dimensions: 215 × 115 × 30 mm (L × W × H)
• Weight: 0.76 kg
